Overview

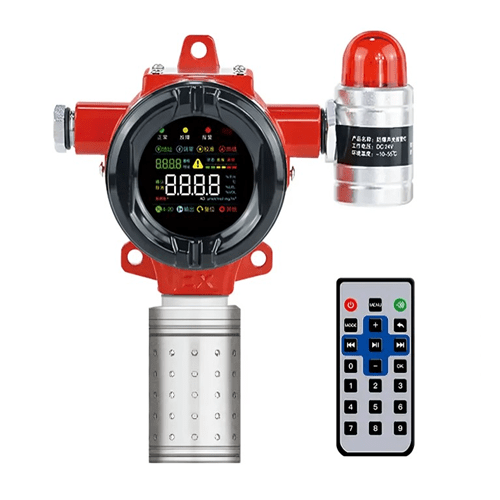

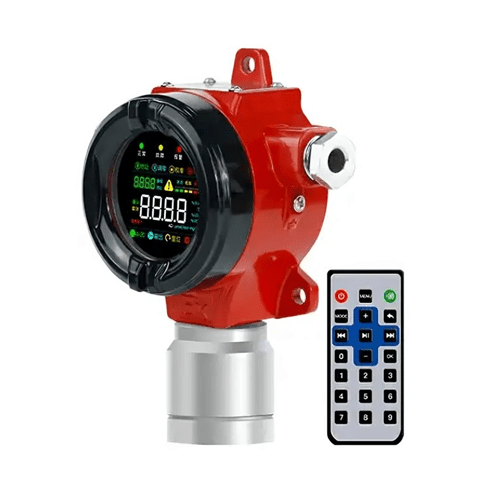

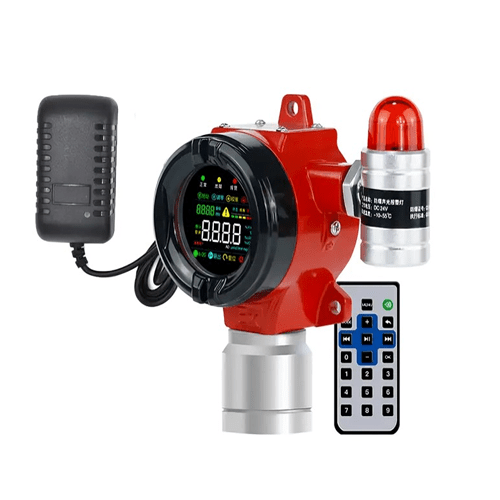

Hospitality Enviro Tech carbon dioxide gas detector uses imported sensitive elements, which have the characteristics of high accuracy, strong interchangeability and high reliability. The internal machine core is in the form of components, such that maintenance can be accomplished only by replacing the components. The shell of the detector is made of die-cast aluminum and the double chamber structure, which is designed to avoid failure because of accidental water intake, dust intake and corrosion. It is small-sized and easy to install. Independent acousto-optic alarm, when the gas concentration exceeds the standard, it will send out accustom to optic alarm on the spot.
Features
- Audible alarm
- The sensor is sensitive durable and anti poisoning
- Unique filter cover eliminates most other gas interference
- Long term stability
- Wide range of applications
- Easy wiring and installation
Technical Specifications
| Type | Fixed gas detector |
| Sensor | Infrared |
| Display | LED digital display |
| Measure range | 0 VOL to 5% VOL or 0 ppm to 10000 ppm |
| Detecting gas | CO2 |
| Alarm type | Sound + Ligh Alarm |
| Accuracy | 1% VOL or 1 PPM |
| Protection level | IP66 |
| Output signal | 4 ma to 20 ma or RS 485 or switching walue |
| Power supply | 24 VDC |
| Distance | 3937 ft (1200 m) |
| Shell type | Die casting aluminum |
| Installation | Wall mounted or tube mounted |
| Size | 7.87402 in x 7.48031 in x 3.74016 in (200 mm x 190 mm x 95 mm) |
