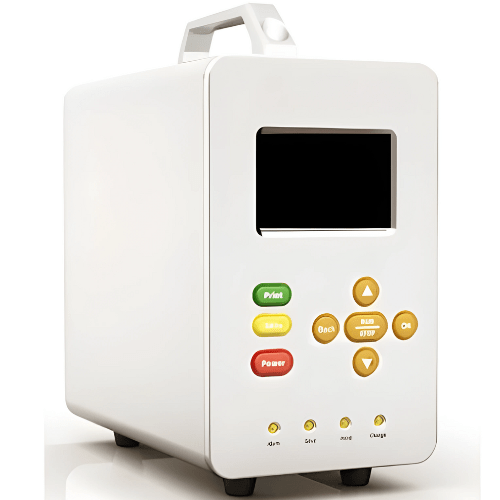

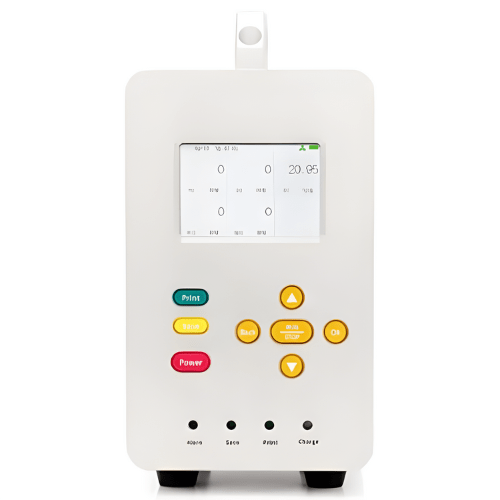

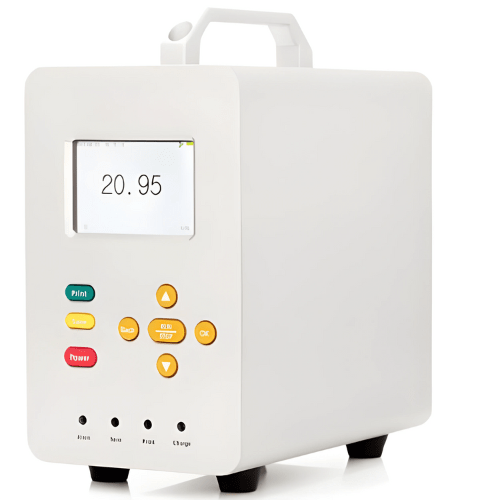

Features
- Configure up to 6 Gas Sensors

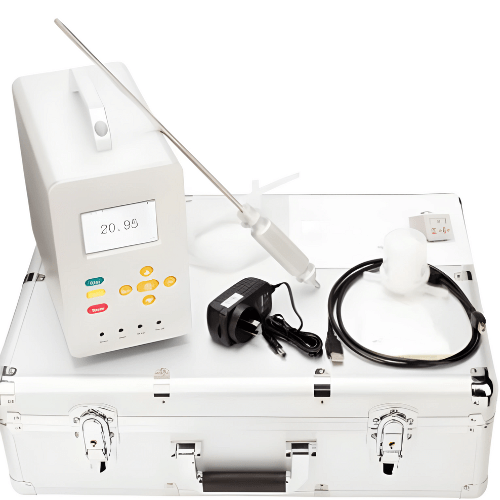

- External Pump Included

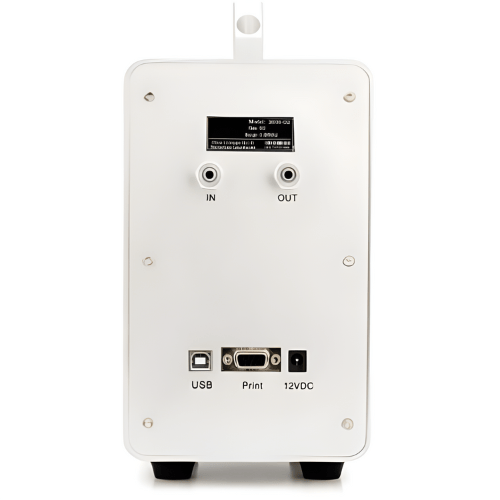

- Printing Function
- Aluminium Alloy Material
Technical Specifications
| Detection Gases | 6 kinds of gases |
| Scalable Gas Sensor | User can customize 1 to 6 gas sensors in any combination |
| Humidity Detection Range | 0% RH to 100% RH |
| Detection Pattern | Pumping, with built-in high-power pump allow device working under tiny negative pressure condition |
| Detection Accuracy | ≤ ± 3% FS |
| Linearity Error: | ≤ ± 1% FS |
| Reaction Time | ≤ 20 Seconds |
| Zero Drift: | ≤ ± 1% (FS/Year) |
| Recovery Time | ≤ 20 S |
| Repeatability | ≤ ± 1% FS |
| Detection Mode | Real-time and timing detection mode can be switch freely |
| Storage Pattern | Automatically saving and manually saving is available, up to 100,000 group data, user can view history data on the display. |
| Explosion Proof Sign | Exdll CT4 IA |
| Shell Material | Aluminium |
| Temperature Detection Range | -40 ºF to 248 ºF (-40 °C to 120 °C) |
| Temperature | -22 ºF to 140 ºF (-30 °C to 60 °C) |
| Dimensions | 9.1 in x 4.7 in x 1.2 in (230 mm x 120 mm x 32 mm) |
| Weight | 6.6 lb (3 kg) |
