Overview

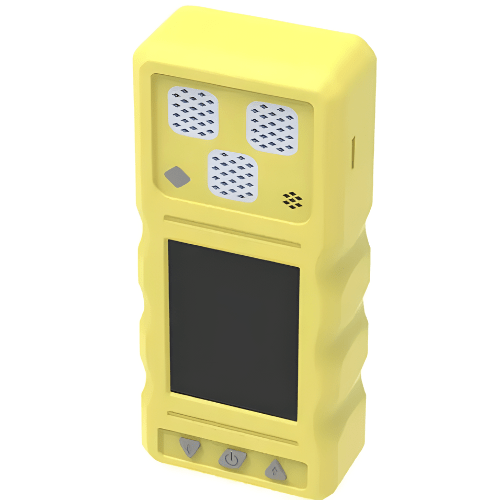

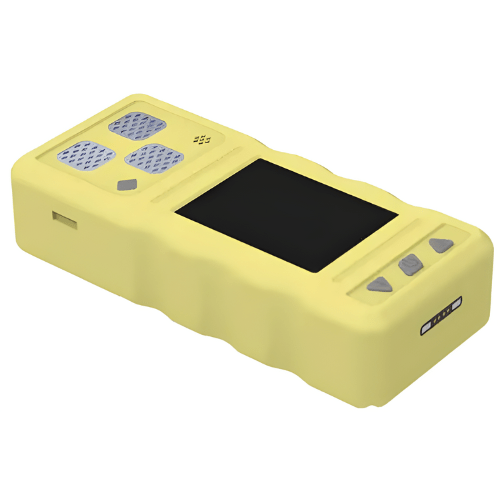

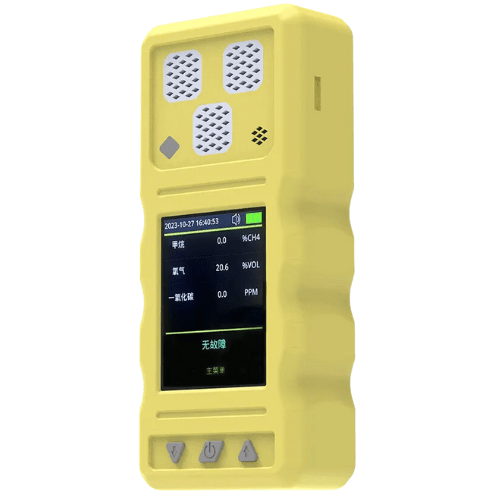

Hospitality Enviro Tech Carbon Dioxide Detector The portable multi-parameter gas detector is designed to meet the needs of coal mining industry. It can be used to detect the concentrations of methane (CH4), carbon monoxide (CO), and oxygen (O2) in the working environment underground in coal mines.
Features
- High explosion protection level
- Smart and easy to operate and maintain
- Display mode can be switched
- Real-time or timed detection supported
- Multiple alarm modes and alarm mode settings
- Not affected by zero drift during long-term use
- OEM or ODM supported
Technical Specifications
| Detection Method | Diffusion type |
| Gas Monitor | CH₄, CO, O₂ (customizable) |
| Concentration Readout | ppm, mg or m 3, %VOL, %LEL, etc. |
| Detection Range | CH4: 0% to 4%; CO: 0 ppm to 1000 ppm; O2: 0% to 30% (customizable) |
| Detection Principle | Methane: Infrared or catalytic combustion; Carbon monoxide, oxygen: Electrochemical (electrochemical, catalytic combustion, infrared, thermal conductivity, semiconductor, PID photoionization, etc., depending on the gas type, range, field environment, and user requirements) |
| Response Time | T 90 ≤ 30 seconds Recovery Time ： ≤30 seconds |
| Power Supply | 3.7 VDC, 1800 mAh large-capacity rechargeable lithium manganese battery |
| Operating Time | ≥ 12 hours of operation after normal charging |
| Display | 2.4-inch 320 x 240 high-definition color screen display, 3-button operation |
| Communication Interface | Wifi 6 communication |
| Charging Method | Magnetic suction charging |
| Data Storage | Standard large-capacity data storage of 100,000 records (other capacities can be customized) |
| Alarms | Concentration alarm, fault alarm, fall alarm |
| IP Rating | IP66 dustproof, spray-proof |
| Explosion-Proof Certification | Intrinsically safe Ex ia I Ma or Ex ia ⅡC T 4 Ga |
| Options | Temperature and humidity measurement function |
| Operating Environment | Operating temperature: -4 °F to 131 °F (-20 ℃ to +55 ℃) (typical value), -40 °F to 158 °F (-40 ℃ to +70 ℃) (limit), relative humidity ≤ 95% RH (non-condensing) |
| Size | 5.51 in × 2.44 in × 1.33 in (140 mm × 62 mm × 34 mm) |
| Weight | 0.44 lb (0.2 kg) (slightly varies with different gas combinations) |
