Overview

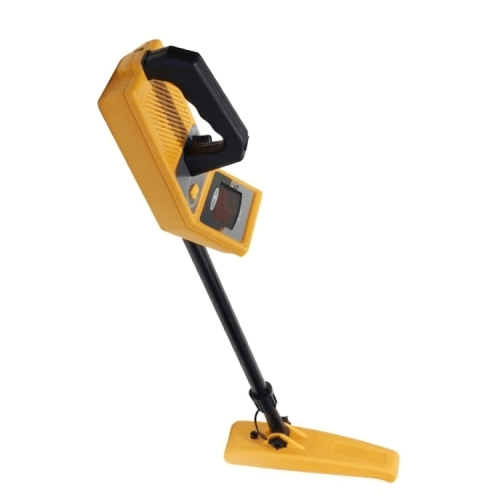

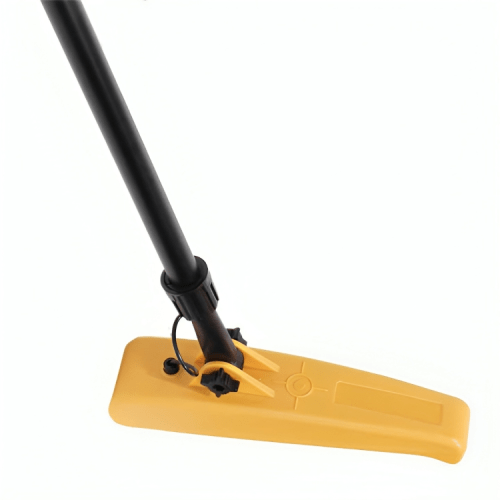

Hospitality Enviro Tech cable fault underground locator. The receiver together with the transmitter, can be used for pipe positioning. Place the transmitter in the pipe, the receiver will receive the 512 hz signal, from the transmitter. Adjust the direction of the receiving antenna and the sensitivity of the receiver, which can help pipe position.
Technical Specifications
| Frequency | 512 HZ |
| Power Supply | 6 x AA alkaline batteries |
| Static Current | < 55 mA |
| Operation Mode | NORM or NOISE CONTROL. The boot preset is NOISE COTROL. |
| Sensitivity Grade | NEAR or FAR. The boot preset is NEAR. |
| Sensitivity Adjust | Continuous adjustable |

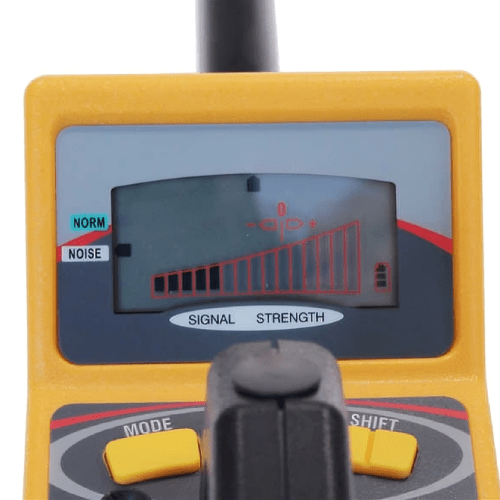

| Signal Strength Indicate | LCD display 15 levels, the 11 level is set to “0” Speaker or headphone (not included) |
| Low Voltage Prompt | 7.2 V |
| Temperature | 14 ℉ to 122 ℉ (-10 ℃ to 50 ℃) |
| Size | 35.4 in × 3.93 in × 3.93 in (90 cm x 10 cm x 10 cm) |
| Weight | 2.2 lb (1 kg) |
