Overview

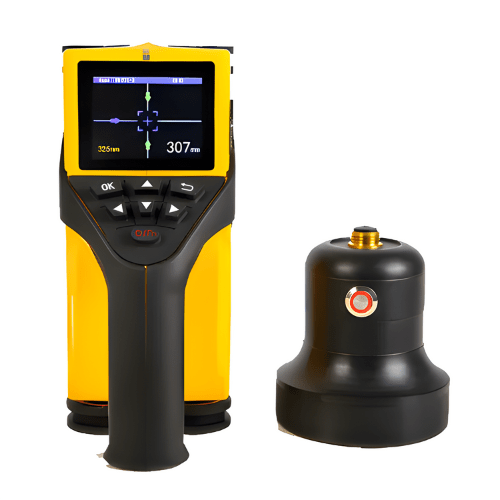

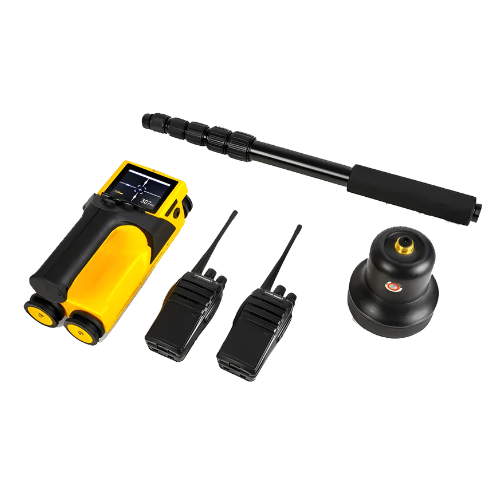

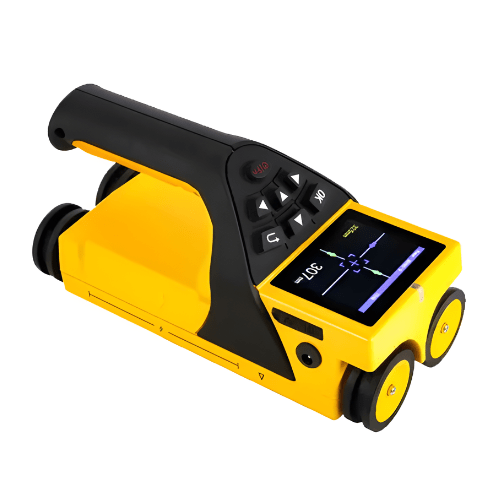

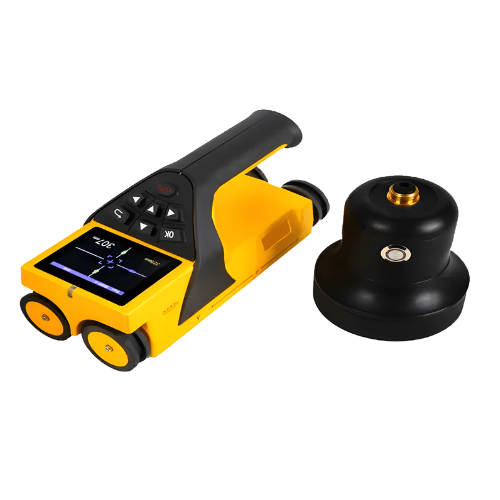

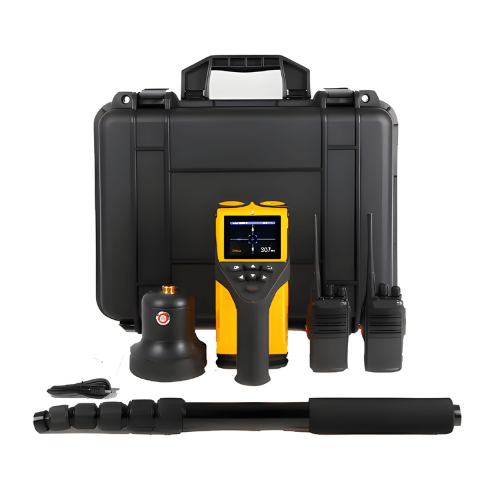

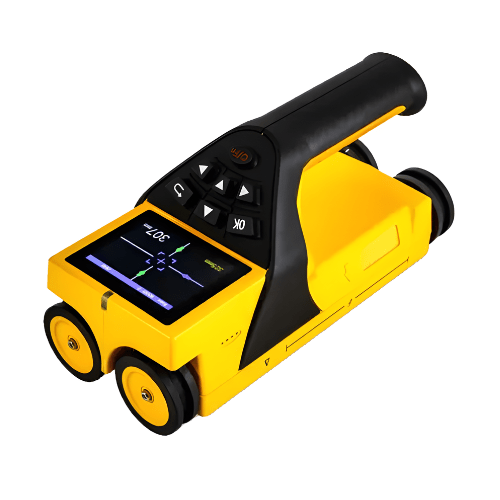

Hospitality Enviro Tech board thickness tester is mainly used for non-destructive testing of the thickness measurement of concrete structures or other non ferromagnetic media, such as: measuring the non ferromagnetic thickness of cast-in-situ floor slabs, walls, beams, columns, wood and ceramics, adopting receiving. The unique design of the combination of the probe and the host, only needs to test the transmitting probe on the corresponding surface (floor slab, etc.) to measure the non ferromagnetic thickness value.
Technical Specifications
| Type | Concrete floor slab thickness detector |
| Test Scope | 0.7 in to 17.7 in (20 mm to 450 mm) |
| Permissible Error | 0.7 in to 7.8 in (20 mm to 200 mm) |
| Permissible Error High Range | 7.9 in to 177.1 in (201 mm to 4500 mm) |
| Data Storage Capacity | 200000 test points |
| Power Supply | Integrated batteries can work more than 26 hours |
| Display Resolution | 320 x 240 |
| Customized Support | OEM |
