Overview
Hospitality Enviro Tech benchtop thermocouple temperature data logger has powerful programmable universal input each channels, to achieve various parameters measuring and recording a unit, each channels are isolated individually, meanwhile with various output, download, communication function.
Features
- Remote real time reading and monitoring
- USB data transferring, plug and play
- Isolated RS 485 or ethernet
- MODBUS RTU SCADA, DCS, PLC, HMI, OPC
- 8 GB USB
- Excel export
Technical Specifications
| Accuracy | ±(0.2% FS +1) digital |
| Display | 7 in (177.8 mm) Color LCD TFT |
| Power supply | 100 V AC to 240 V AC standard |
| Sampling | 1 s per 8 channels |
|
Memory Capacity |
Memory capacity can be set flexibly according to the memory interval time setting. Huge capacity for long time data saving up to 10 years with power off protection |
| Memory Interval time | 1 s, 2 s to 3600 s, can be set flexibly as required in recorder |

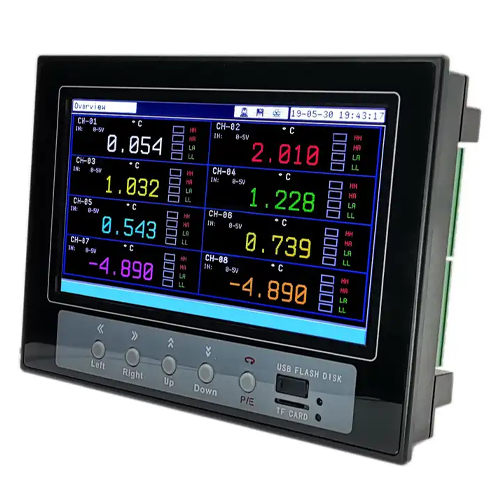

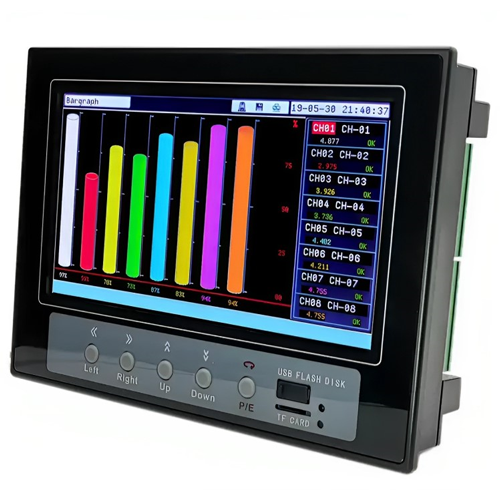

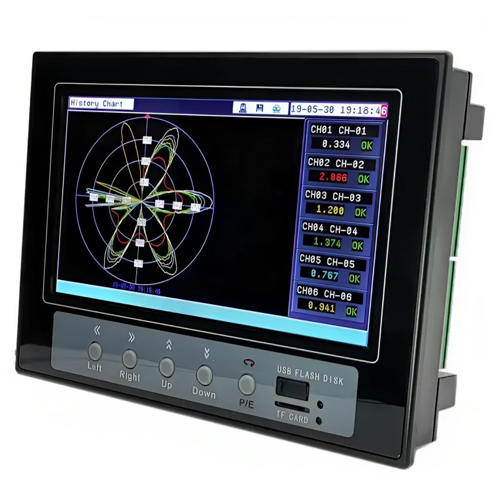

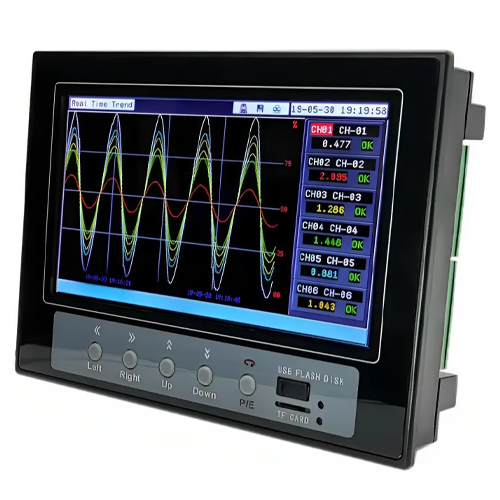

| Screen Display | Various screen display in digital, trend, barograph, circular chat display |
| PC software | Powerful software function: to display memorized data in digital curve, Print Data and export the data to excel for further analysis |
| Universal Input | Thermocouple, RTD, Analog, mV, frequency input, programmable |
| Input Channels | 8 Channels |
| Channels Isolation | 400 V AC photoelectrical isolation |
| RS 485 communication | Standard MODBUS RTU protocol, |
| Relay output | 3 A, NO, max 16 relay output, configurable for channels |
| Ethernet Communication | Standard ethernet MODBUS TCP or IP protocol |
| feed output | auxiliary 24 V DC output for transmitter |
| printing output for data in digital and curve | |
| Flow totalizer | with temperature, pressure compensation for channels |
| Size | 7.48 in × 5.70 in × 2.38 in (190 mm x 145 mm x 60.5 mm) |
