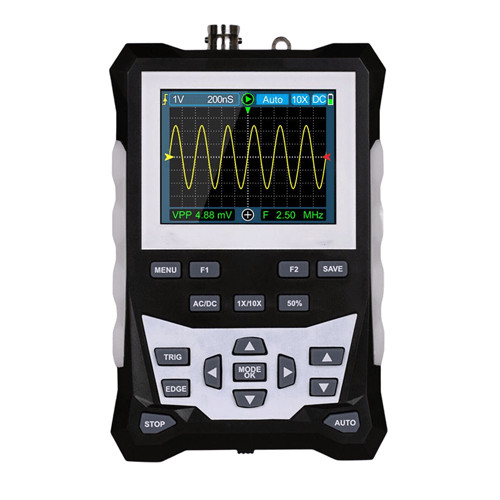

| Display |
320 x 240 LCD screen |
| Backlight |
White, brightness adjustable |
| Impedance |
x11 M ohms or x10 10 M ohms |
| Battery |
18650 lithium battery |
| Auto shutdown |
No operation for 15 minutes |

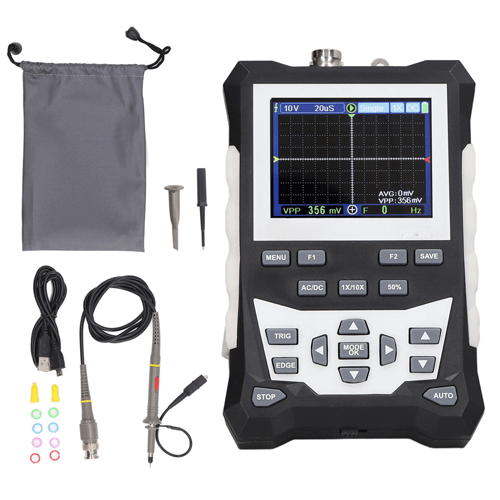

| Accessories |
100 MHz probe, charging cable |
| Storage |
2500 DSO waveforms |
| Use conditions |
32 °F to 104 °F (0 ℃ to 40 ℃), < 75% RH |
| Storage conditions |
14 °F to 140 °F (-10 ℃ to 60 ℃), < 90% RH |
| Analog bandwidth |
120 MHz |
| Maximum real-time sampling rate |
500 MSps |
| Vertical resolution |
8 bits |
| Vertical accuracy |
± (5%+ 0.2 div) |
| Auto zero reference |
During DC measurement |
| Trigger level |
±3.8 div (0. 1 div per step) |
| Trigger position |
± 6 div (0. 1 div per step) |
| Cursor function |
△V, △t, 1 or △t |
| Nonlinearity |
±1 bit |
| Coupling method |
DC or AC |
| Division Vertical |
±3.8 Horizontal 12 |
| Time base range |
6 ns or div to 50 s or div |
| Time base accuracy |
± (0.01% +0.1 div) |
| Scan mode |
Auto or Single or Normal |
| Trigger slope |
Rising or Falling |
| Record length |
12 div |
| Up to configuration |
Automatically set time base and vertical amplitude |
| Automatic measurement function |
Vpp, Vrms, Vavg, Vp, Vmax, Vmin, F, T, T+, T-, Du+, Du- |
| Vertical sensitivity range |
x1 50 mV or div to 10 V or div, x10 500 mV or div to 100 V or div |
| Display area |
1.96 in × 1.57 in (50 mm x 40 mm) |
| Size |
4.88 in × 3.14 in × 1.37 in (124 mm × 80 mm × 35 mm) |
| Weight |
0.39 lb (180 g) |
