Overview

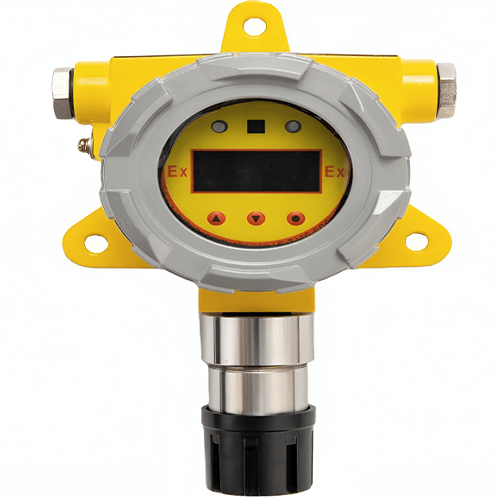

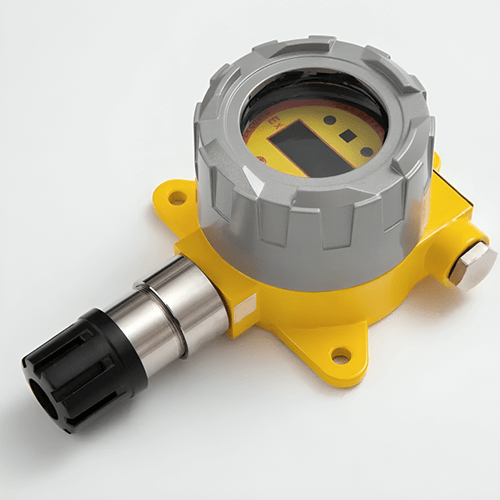

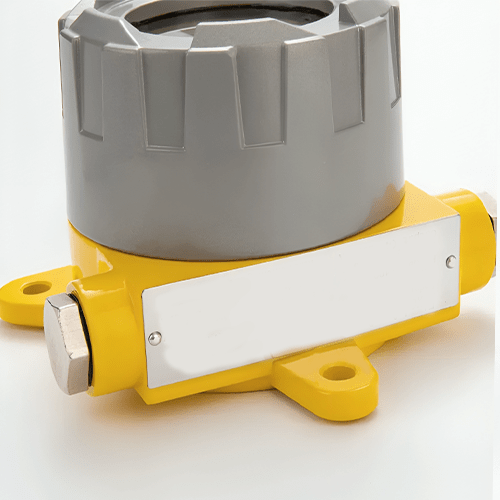

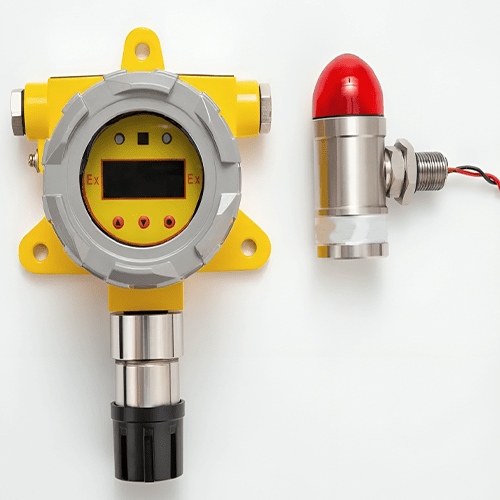

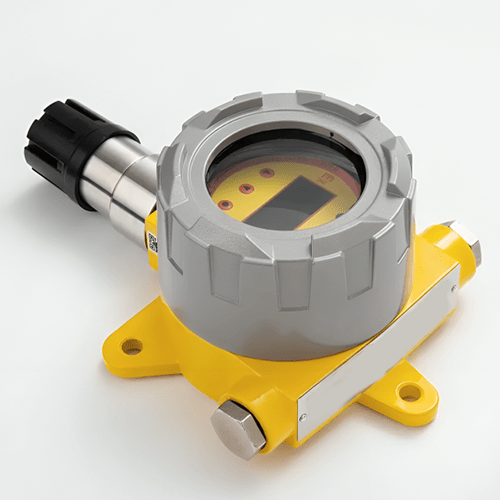

This Alarm Gas Detector has output signal 4 mA to 20 mA , response time of T 90 less than 30 s, and working temperature of -40 °F to 158 °F.
Features
- Sensor module can be replaced
- Display module
- Output signal board module
- Main electric board module
Technical Specifications
| Working Power | DC 24 V (Other power supply contact for solutions) |
| Detection Range | As per gas type (combustible gas, toxic gas, oxygen) |
| Alarm Value | 1st alarm as per gas type, 2nd alarm as per type |
| Response Time | T 90 < 30 s |
| Output Signal | (4 mA to 20 mA) or Digital signal |
| Relay | Yes, two passive output relay output (AC 220 V 3 A) |
| Display | LED display |
| EX Grade | Ex db IIC T6 Gb, ATEX, SIL, and CNEX certified |
| Design | Module type design |
| Working Temperature | -40 °F to 158 °F (-40 °C to + 70 °C) |
| Net Weight | 2.64 lb (0.120 kg) |
