Features
- Using imported high-precision Infrared principles sensor
- LCD dot matrix display technology can display the type of gas
- Gas concentration unit PPM, mg/m3 can quickly switch display
- Built-in micro sampling pump
- Explosion-proof certification, proof grade
Technical Specifications
| Gas Detected | Total, organic volatiles (TVOC) |
| Detection principle | Electrochemical principles |
| Measure Range | 0 ppm to 50 ppm, 100 ppm, 1000 ppm |
| Resolution | 0.01 ppm, 0.1 ppm |
| Sampling method | Pump- suction, flow up 1 L/min, pump suction size ten stalls. adjustable |
| Precision | 2% |
| Data logger | 100,000 sets of data can be stored, storage space available set,minimum 5 seconds, can be browsed. |
| Response Time | ≤ 10 seconds |
| Repeatability | ≤ ± 1% |
| Zero shift | ≤ ± 1% (F.S per Year) |
| Operating language | Support in English |
| Temperature | -40 °F to 158 °F (-40 ℃ to 70 ℃) |
| Explosion-Proof | Exia Ⅱ CT4 |
| Alarm mode | Sound, light, vibration |
| Recovery Time | ≤10 seconds |
| Linearity error | ≤±1% |
| Display | LCD dot matrix display technology |
| Gas unit | Support for multiple gas unit switch display. |
| Humidity | 0% RH to 95 % RH |
| Degree of protection | IP 66 |

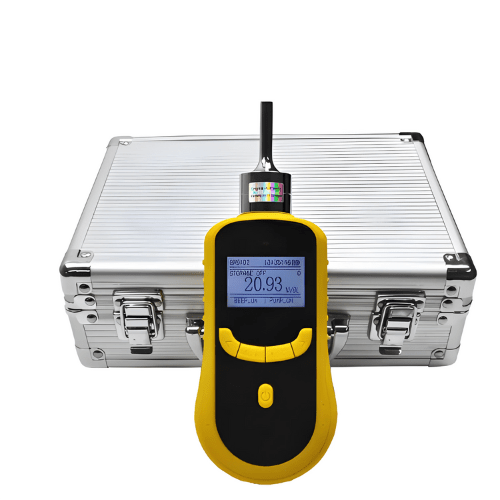

| Standard | 1 host computer, 1 charging plug, 1 aluminum alloy packing box, 1 manual,1 warranty card. |
| Optional | data download (EXCEL format) function, detachable needle,hose, holster,waterproof and dust-proof filter, high temperature probe (up to 1200 degrees) |
| Dimensions | 8.07 in x 2.95 in x 1.25 in (205 mm x 75 mm x 32 mm) |
| Weight | 0.72 Oz (330 g) |
