Overview

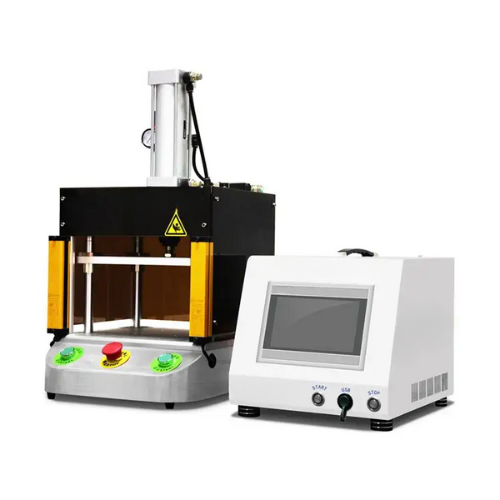

Hospitality Enviro Tech Air Leak Tester main function is to judge whether there is leakage by comparing the gas pressure difference before and after balance, and to test the physical and other related properties of the product. During the whole testing process, the products are not exposed to water at all, and at the same time, the testing efficiency is accelerated (the single product testing speed is 15 seconds, and the judgment result is obtained), and thousands of products can be tested every day.
Technical Specification
| Test pressure | Positive pressure |
| Test pressure range | 0 PSI to 116.03 PSI (0 KPa to 800 Kpa) |
| Test pressure accuracy | 0.001 PSI to 0.002 PSI (10 Pa to 15 Pa) |
| Sensor Accuracy | 0.02 % FS to 0.05 % FS |
| Test medium | Standard compressed air, or other agreed media |
| Power requirements | AC 220 V (± 15 %), 50 HZ, Ground wire |
| Air pressure | 58.01 PSI to 116.03 PSI (0.4 MPa to 0.8 MPa) |
| Environment requirements | Temperature: 32 °F to 122 °F (0 °C to 50 °C), humidity ≤ 90 % (no condensation) |
| Power Supply | 24 V, equipped with a 220 V to 24 V power supply |
| Host size (W × D × H) | 11.81 in × 14.17 in × 11.41 in (300 mm × 360 mm × 290 mm) |
| Tool size (W × D × H) | Customized according to sample size |
