Features
- Used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines
- Specially designed for easy on-site vibration measurement of all rotating machinery

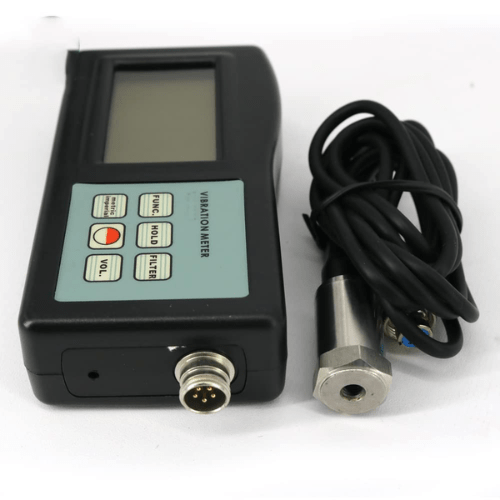

- Individual high-quality accelerometer for accurate and repeatable measurements
- Wide frequency range (10Hz to 10kHz) in acceleration mode
- Optional headphones for use as electronic stethoscope
- Bearing condition monitoring function

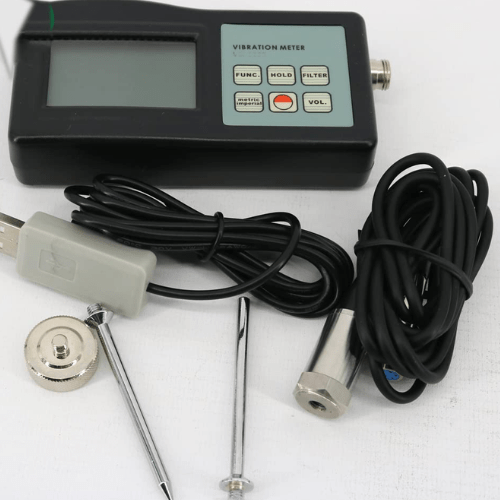

- Use “USB data output” and “RS-232 data output” to connect with PC
- Provide “Bluetooth ™ data output” choice
Technical Specifications
| Measuring Range | Acceleration: 0.3 ft/s 2 to 1312ft/s² (0.1 mm/s2 to 400m/s²) 0.0 to 40G Equivalent Peak Velocity: 0.003 in/s to 15.75 in/s (0.01 mm/s to 400mm/s) True RMS Displacement: 3.937008e-5 in to 0.16 in (0.001 mm to 4.0 mm) 0.0016 in to 6.30 in (0.04 to 160.0 mm) Equivalent Peak-peak |
| Frequency Range | Acceleration: 10 Hz to 1k Hz; 10 Hz to 10k Hz |
| Velocity: 10 Hz to 1k Hz | |
| Displacement: 10 Hz to 1k Hz | |
| Accuracy | 5 % of Reading + 2 digits |
| Analogue Output | AC Output 0 to 2.0 V Peak Full Scale (Load Resistance: Above 10k) |
| Power Off | Manual Power Off or Auto Power Off |
| Battery Indicator | Low Battery Indicator |
| Data Output | USB, RS-232, Bluetooth |
| Operating Conditions | Temperature: 32 °F to 122 °F (0 °C to 50 °C) Humidity: <90 % RH |

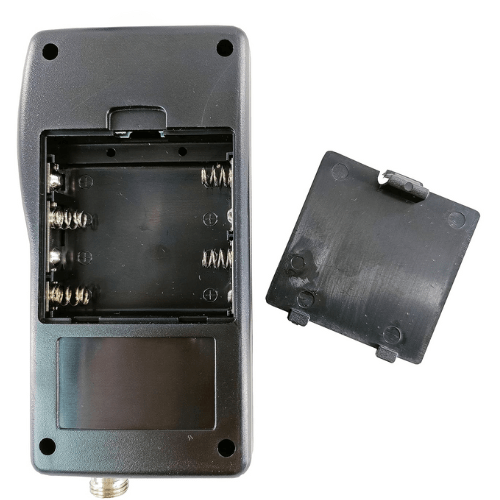

| Power Supply | 4 x 1.5V AAA size (UM-4) Battery |
| Dimensions | 4.88 in x 2.44 in x 1.18 in (124 mm x 62 mm x 30 mm) |
| Weight | 0.26 lbs (120 g) (Not Including Batteries) |
