Features

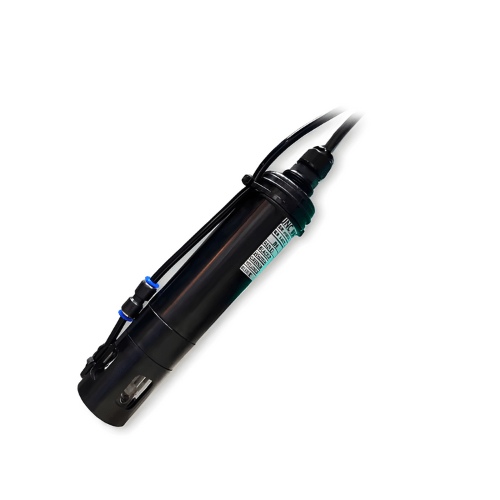

- IoT pH analyser with RS-485 and Wi-Fi web interface
- Automatic cleaning function (optional)
- Smart calibration function
- Smart AI function
- IP68 integrated design
Technical Specifications
| Measuring Range | 0 pH to 14.00 pH Slope Reading: 70 % to 130 % Zero Potential: -50 mV to 50 mV |
| Accuracy | ±0.1 pH |
| Resolution | 0.01 pH |
| Electrodes Withstand Voltage | Max 50 Psig |
| Response Time | T90 1 Second |
| Communication | RS-485 MODBUS RTU |
| Safety Certification | CE, FCC |
| Link Above | 3 or 4 “NPT |
| Link Below | M42 |
| Housing Material | PP, Acid And Alkali Resistance Or Food Grade Or Zero Dissolution |
| Electrode Material | Glass |
| Power | 12 vdc (Auto Cleaning) 9 vdc to 36 vdc (Non-Auto Cleaning) |
| Power Consumption | 1.6 w (Auto Cleaning) 0.8 w (Non-Auto Cleaning) |
| Line Length | 9.84 ft (3 m) |
| Ingress Protection Rating | IP68 |
| Temperature Principle | NTC30K |
| Measuring Range | 14 °F to 248 °F (-10 °C to 120 °C) (ATC) |
| Accuracy | ± 0.2 °F (± 0.2 °C) |
| Resolution | 1.1 °F (0.1 °C) |
| Reproducibility | 1.1 °F (0.1 °C) |
| Operating Temperature | 32 °F to 140 °F (0 °C to 60 °C) |
| Dimension | 1.77 in x 8.42 in (45 mm x 214 mm) |
| Weight | 0.8 lb (0.34 kg) |
