Overview

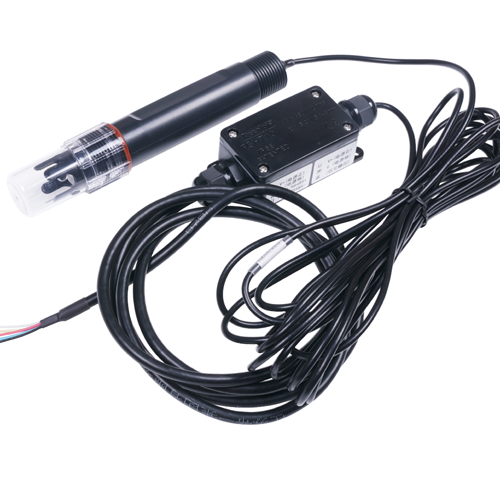

Hospitaity Enviro Tech’s Real Time Monitoring Soil pH Meter, pH sensor, offers a reliable solution for measuring pH values in soil. It eliminates the need for expensive and complex calibration instruments, making it more accessible and user-friendly. This device is designed for continuous pH measurement of soil and wastewater, catering to a wide range of applications including agriculture, sewage treatment plants, chemical industries, printing and dyeing, paper manufacturing, pharmaceuticals, electroplating, and environmental protection. By accurately monitoring soil pH levels, this meter assists in maintaining optimal conditions for various processes and activities in different fields.
Features
- On-line & real-time monitoring
- Solid dielectric and PTFE liquid junction, not easy jam, maintenance free
- High accuracy
- Simple operation and high reliability

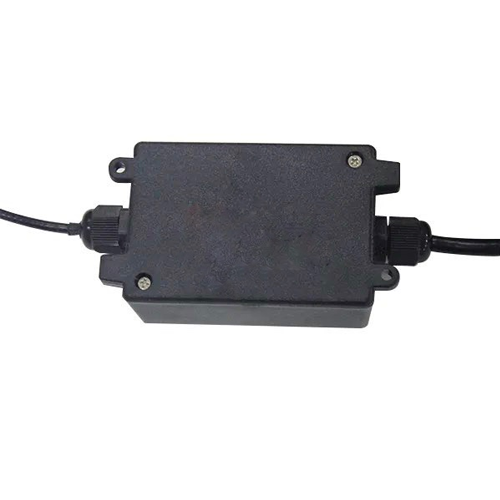

- External analog module is converted into a standard signal output
- Multiple output signal is optional

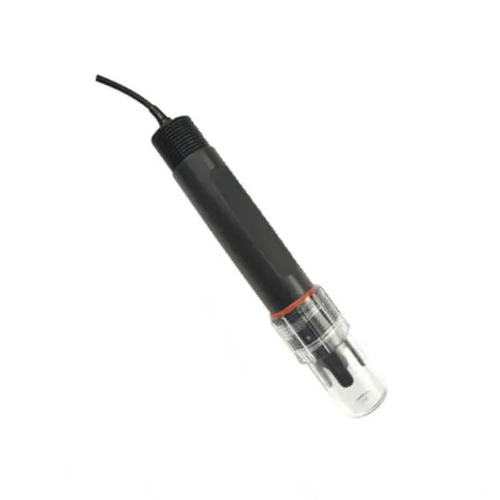

- Probe can be used under water
- Submerged mounting bracket is optional
Technical Specification
| Range | 0 to 14 pH |
| Supply | 5 V DC, 12 to 24 V DC |
| Accuracy | ± 0.1 pH |
| Resolution | 0.01 pH |
| Resolution | 0.02 pH |
| Response time | < 10 s (in water) |
| Stability | ≤ 0.02 PH/ 24 h |
| Output Signal | 4 to 20 mA, 0 to 5V, 0 to 2V, RS485 |
| Dimension | 5.66 in x 5.66 in x 5.23 in (144 mm x 144 mm x133 mm) |
| Operating Temperature | 32 °F to 112 °F (0 ℃ ± 80 ℃) |
| Ingress Protection | IP67 |
