Overview

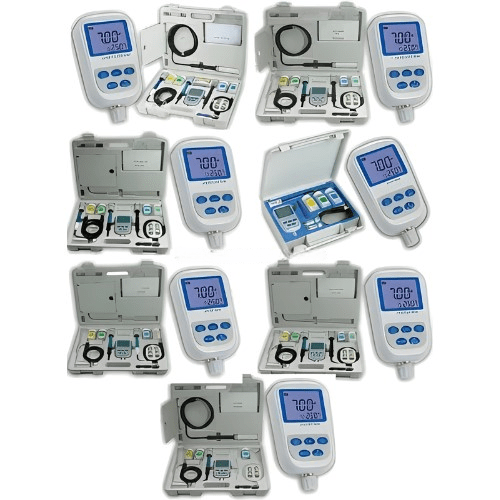

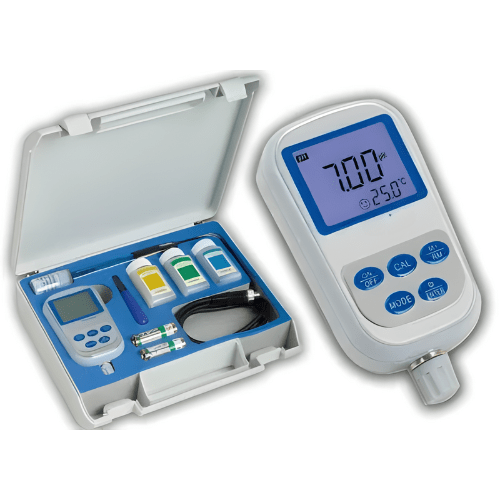

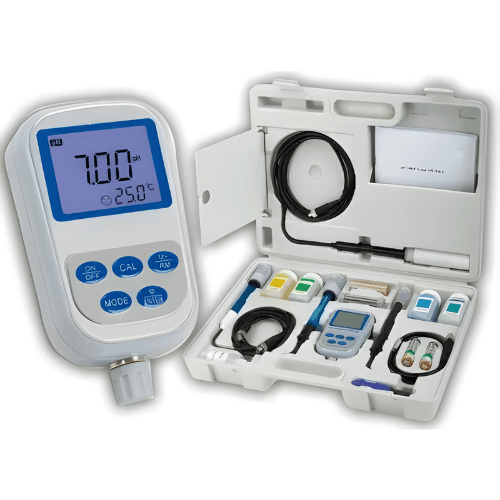

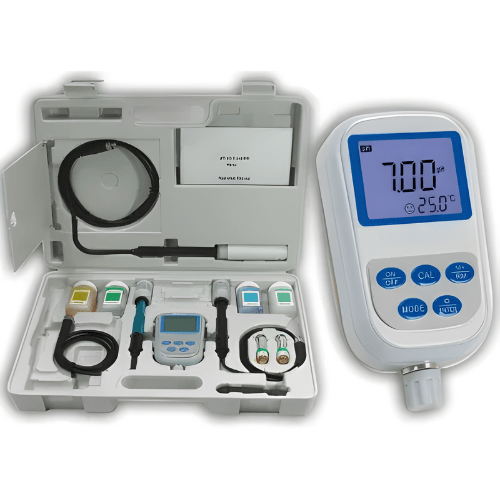

This Portable pH Conductivity Salinity Meter has pH resolution of 0.1/0.01 pH, ±0.01 pH accuracy, and mV resolution of 1 mV.
Features
- Integrated Smart Microprocessor
- Digital filter enhances Response speed
- Buffer Solution Auto-Recognition System
- pH mode for Purified Water and ammonia
- Ideal for power and petrochemical fields
- Circuit board uses SMT film-covering to enhance production reliability
- Meter has the back light LCD display monitor
- Dustproof and waterproof meter meets IP57 rating
Technical Specifications
| PH | |
| Measuring Range | (-2.00 to 19.99) pH |
| Resolution | 0.1 pH or 0.01 pH |
| Accuracy | Meter: ±0.01 pH; connect meter with electrode: ±0.02 pH |
| Temp. Compensation Range | 32 ∘F to 212 ∘F (0 ºC to 100 ºC) |
| MV | |
| Measuring Range (mV/ORP/EH) | -1999 mV to 0 to 1999mV |
| Resolution | 1 mV |
| Accuracy | Meter: ±0.1% FS, connect meter with electrode: ±15 mV |
| Conductivity | |
| Measuring Range | Conductivity: (0.00 to 19.99) μS/cm (20.0 to 199.9) μS/cm (200 to 1999) μS/cm (2.00 to 19.99) mS/cm (20.0 to 199.9) mS/cm TDS: (0 to 100) g/L Salinity:(0 to 100) ppt Resistivity:(0 to 100) MΩ.cm |
| Resolution | 0.01 μS/cm or 0.1 μS/cm or 1 μS/cm 0.01 mS/cm or 0.1 mS/cm |
| Accuracy | Meter: ±1.0% FS, connect meter with electrode: ±1.5% FS |
| Electrode Constant | 0.1 cm-1 or 1 cm-1 or 10 cm-1 |
| Other Technical Parameters | |
| Data Storage | 300 groups |
| Storage Content | Series number, measuring value measuring unit and temperature, |
| Power | Two AA batteries (1.5 V x 2) |
| Conductivity Benchmark temperature | 77 °F, 68 °F and 64.4 °F (25 °C, 20 °C and 18 °C) |
| Conductivity Temp. compensation Range | 32 °F to 122 °F (0 °C to 50 °C) |
| Size | 14.17 in × 10.63 in × 2.99 in (360 mm x 270 mm x 76 mm) |
| Weight | 3.74 lb. (1.7 kg) |
