Features
- Special backlit LCD display
- It can measure conductivity, TDS, salinity and temperature
- It functions as automatic temperature compensation and automatic calibration
- It provides power failure protection and automatic power-off functions
- It has calibration function
- The user can calibratesensor coefficient and TDS conversion coefficient
- Measuring results can be stored, deleted and viewed
- Up to 100 sets of test data can be stored
- It has RS-232 port and can be connected with TP-16 printer
- If matched with data collecting software, it can be communicated with PC
- If matched with the titanium alloy sensor of 0.01cm-1 and sealed measuring reservoir, it can test high purity water

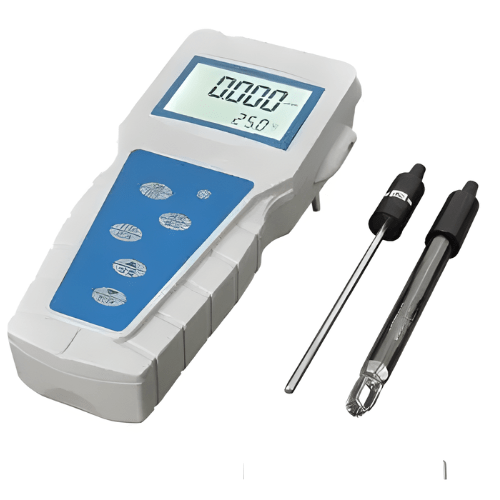

- It is equipped with DJS-1C conductance sensor (platinum black) and T-818-B-6 temperature sensor
Technical Specifications
| Measuring Range | Conductivity: 0.000 μS/cm to 100 mS/cm and five measuring ranges and automatic switch TDS:0.000 mg/L to 19.99 g/L and five measuring ranges and automatic switch Salinity: (0.00 % to 8.00 %) Temperature: 32 ∘F to 104 ∘F (0.0 ℃ to 40.0 ℃) |
| Accuracy | Conductivity: ±1.0 % (FS) T D S: ±1.0 % (FS) Salinity: ±0.20 % Temperature: ±0.54 °F (±0.3 ℃) ±1 bit |
| Stability | (±0.7 %FS)/3h |
| Temperature Compensation Range | Manual/Automatic 32 ∘F to 104 ∘F (0.00 ℃ to 40.0 ℃) |
| Power Supply | 4 alkaline batteries of model 5 |
| Package Size | 19.68 in × 14.96 in × 8.66 in (500 mm X 380 mm X 220 mm) |
| Dimension(mm) | 8.26 in × 3.38 in × 1.96 in (210 mm × 86 mm × 50 mm) |
| Net Weight | 1.10 lb. (0.5 kg) |
