Overview

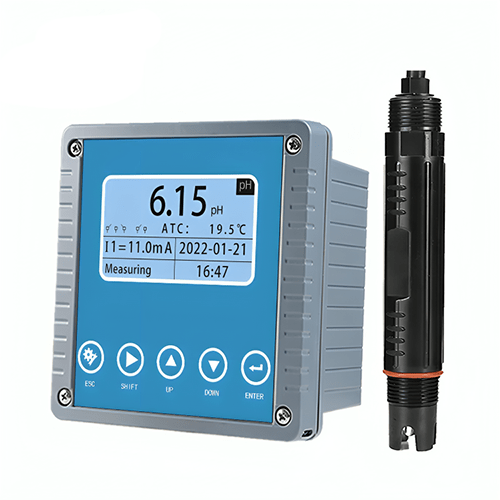

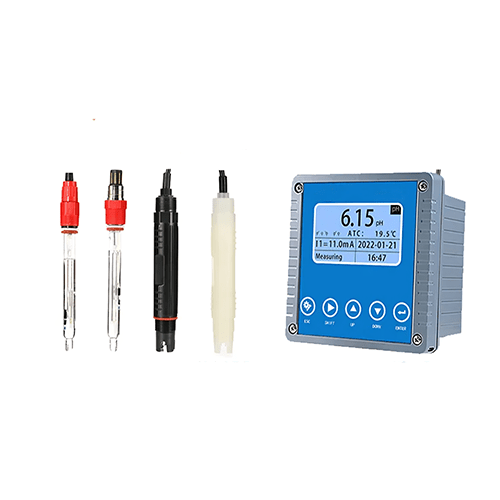

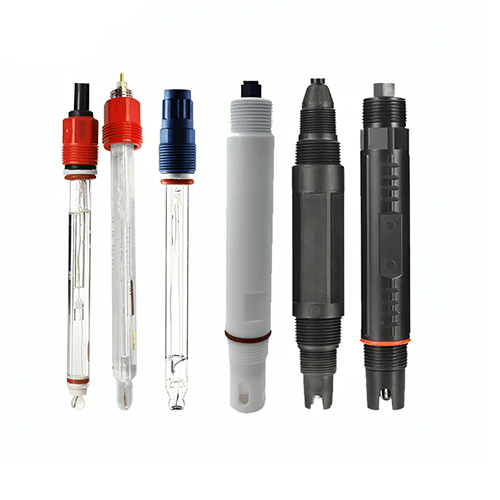

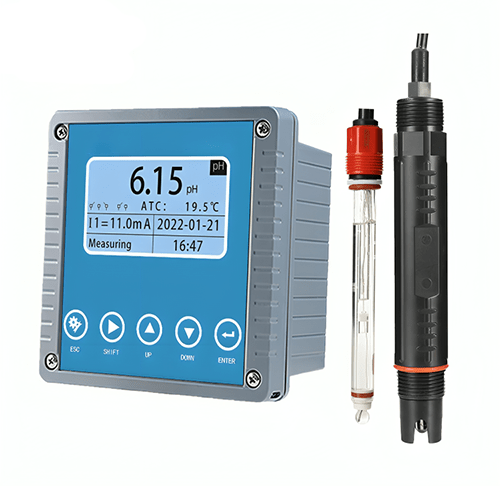

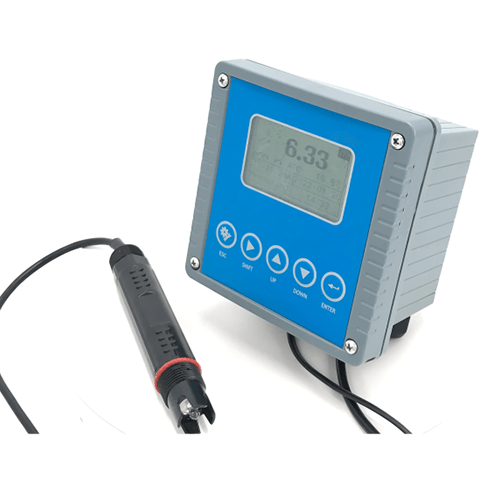

Hospitaity Enviro Tech pH meter smart sensor controller is a built-in A/D conversion module, compatible with a variety of analog signal electrodes. Complete functions, stable performance, easy operations, low power consumption, safety, and reliability are the outstanding advantages of this instrument. This instrument is equipped transmission interface, which can be connected to the host computer through Modbus RTU protocol to realize monitoring and recording. It can be widely used in industrial occasions such as thermal power generation, the chemical industry, metallurgy, environmental protection, pharmaceutical, biochemical, food, and tap water.
Features
- Backlit Settings
- Three sets of control relays
- English and Chinese Model
- Storage capabilities
- HD large screen full-function display

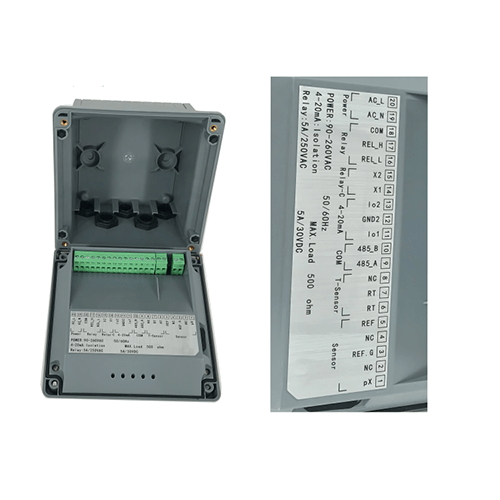

- Easy connection
- Distinguishable wire
- Clear identification
Technical specifications
| Measurement | pH/ORP/Temperature |
| Measuring Range | 3 ug to 200 mg water |
| Shell Material | ABS plastic |
| Power Supply | 90 V to 260 V AC 50 / 60 Hz |
| Consumption | 4 W |
| Output | Two ways 4 mA to 20mA output, RS485 |
| Relay | 5A/250V AC 5A/30V DC |
| Communication | RS485 Modbus RTU |
| Measurement | ±1% FS ±0.5 ℃ (41 ° F) |
| Temperature Compensation | PT1000/NTC10K |
| Dimension | 5.66 in x 5.66 in x 4.09 in (144 mm x 144 mm x 104 mm) |
