| Conductivity |
| Range |
0.01 µS/cm to 20.00 µS/cm, 200.0 µS/cm, |
|
2000 µS/cm, 20.00 mS/cm, 200.0 mS/cm |
| Accuracy |
±1% F.S |
| Resolution |
0.001 µS/cm, 0.01 µS/cm, 0.1 µS/cm, 1 µS/cm |
| Calibration Points |
1 point to 3 points |
| Calibration Solutions |
84 µS/cm, 1413 µS/cm, 12.88 mS/cm, |
|
111.8 mS/cm |
| TDS |
| Range |
0 ppm to 10.00 ppm, 100.0 ppm, 1000 ppm, |
|
10.00 ppt, 100.0 ppt (Max. 200 ppt) |
| Accuracy |
±1% F.S |
| Resolution |
0.01 ppm/ppt, 0.1 ppm/ppt, 1 ppm/ppt |
| TDS Factor |
0.1 to 1.0 (Default 0.5) |
| Temperature |
| Range |
32 °F to 212 °F (0 °C to 100 °C) |
| Accuracy |
±1.8 °F (±1 °C) |
| Calibration Points |
1 point |
| Calibration Range |
Measured value ±18°F (±10 °C) |
| Communication |
|
| Signal Output |
4 mA to 20 mA |
| Load |
Max. 500 Ω |
| Low or High Alarm |
0.02 µS/cm to 20.0 mS/cm, selectable |
| Communication Interface |
RS 485 |
| Connection Terminals |
Detachable screw terminals |
| General |
|
| Temperature Compensation |
32 °F to 212 °F (0 °C to 100 °C), Automatic |
| Cell Constant |
K=0.1, 1, 10 |
| Reference Temperature |
77 °F (25 °C) |
| Environmental Conditions |
| Ambient Temperature |
<140 °F (<60 °C) |
| Relative Humidity |
<80% |
| Power |
|
| Power Supply |
DC 24 V |
| Optional Accessories |
|

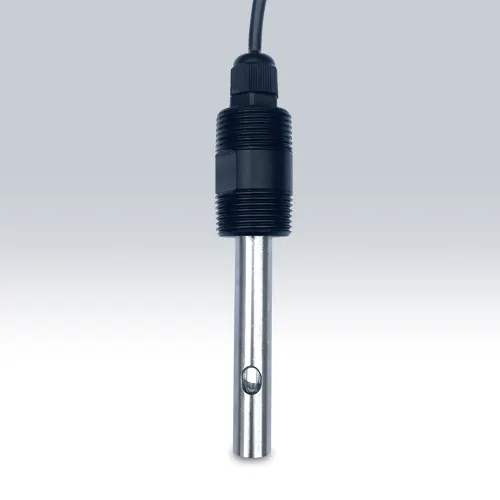

| IE-50LT Conductivity Electrode |
Suitable for measuring pure water |
| IE-50MT Conductivity Electrode |
Suitable for measuring general liquids |
| IE-50HT Conductivity Electrode |
Suitable for measuring high conductivity |
| Conductivity Standard Solutions |
480 mL/bottle |
| Dimensions |
3.78 in x 3.78 in x 2.95 in (96 mm x 96 mm x 75 mm) |
| Weight |
0.77 lb (350 g) |
