Overview

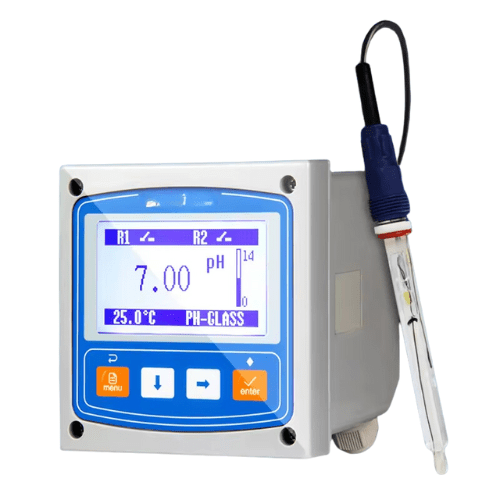

Hospitaity Enviro Tech measuring water quality pH meter is an instrument used to measure the pH value of a solution, and the method for measuring the pH value of an acidity meter is a potentiometric method. In addition to measuring the acidity of the solution, it can also measure the electromotive force (mV) of the battery. It is mainly composed of three parts: reference electrode (calomel electrode), indicator electrode (glass electrode) and precision potentiometer. When measuring, the glass electrode is used as the indicating electrode, and the saturated calomel electrode (SCE) is used as the reference electrode to form a battery.
Technical Specifications
| Measure Range | pH: 0.00 pH to 14.00 pH ORP: -1000 mV to 1000 mV -2000 mV to 2000 mV (customized) |
| Accuracy | pH: ± 0.02 pH, ORP: ± l mV |
| Input Resistance | > 1012 Ω |
| Current Output | 4 mA to 20 mA |
| Measure Range | The maximum load is 750 Ω, the output accuracy is ± 0.2 % FS |
| Relative Humidity | 10 % RH to 85 % RH |
| Temp Comp | NTC10K: -50 °F to 140 °F (-10 °C to 60 °C), Accuracy: ± 37.4 °F (± 0.3 °C), -50 °F to 266 °F (-10 °C to 130 °C) Manual or Auto |
| Working Temp. | 32 °F to 140 °F (0 °C to 60 °C) |
| Power Supply | 220 V AC, 50 V, 24 V DC |
| Display | 2.8 in Monochrome LCD |
| Dimensions | 3.77 in x 3.77 in x 0.47 in (96 mm x 96 mm x 12 mm) |
| Hole Size | 3.62 in x 3.62 in (92 mm x 92 mm) |
| Weight | 22.04 lb (1.0 kg) |
