Technical Specifications

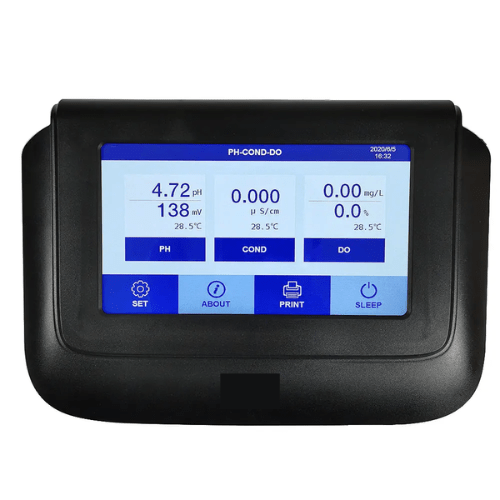

| Display | 7-in capacitive touch screen |
| Measurement Range | 0.00 μS/cm to 20.00 μS/cm, 20.0 μS/cm to 200.0 μS/cm, 200 μS/cm to 2000 μS/cm, 2.00 mS/cm to 20.00 mS/cm, 20.0 mS/cm to 200.0 mS/cm |
| Resolution | 0.011 μS/cm /or 0.1 μS/cm or 1 μS/cm, 0.01 mS/cm or 0.1 mS/cm |
| Accuracy | Electrode: ±1.0% FS, Instrument: ±1.50% FS |
| Electrode Constant | 0.1 cm-1 or 1 cm-1 or 10 cm-1 |
| EC Calibration | 1 point |
| DO Measurement Range | 0 mg/L (ppm) to 20.00 mg/L (ppm) 0% to 200.0% |
| DO Resolution | 0.1 mg/L (ppm) or 0.01 mg/L (ppm), 1% or 0.1% |
| DO Accuracy | ±0.40 mg/L, ±0.3% |
| Response Time | ≤30 s 77 °F (25 ℃), 90% response |
| Residual Current | ≤0.1 mg/L |
| Salinity Compensation | 0 ppt to 45 ppt (automatic) |
| Pressure Compensation | 0.8 bar to 1.05 bar (80 kPa to 105 kPa) (automatic) |
| Automatic Calibration | full oxygen in air and zero air calibration |

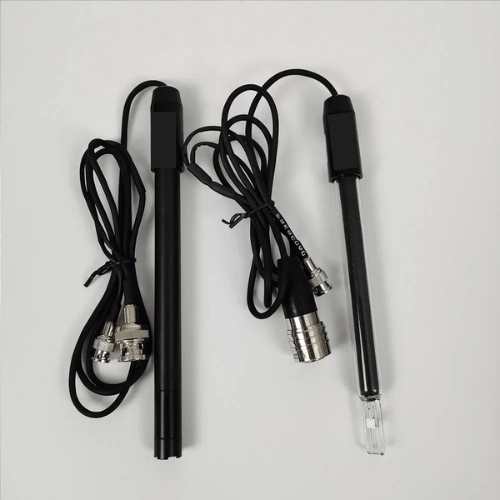

| Electrode Type | Polarographic |
| Data Storage | 300 sets |
| Power Supply | DC 12 V / 1 A (with power adapter) |

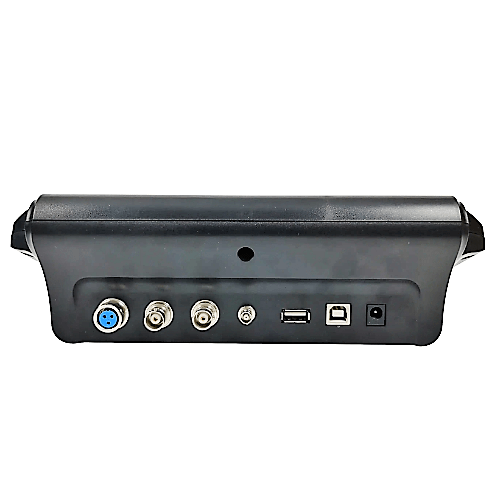

| Communications | USB, Bluetooth |
| Storage Contents | Series number, measuring value measuring unit and temperature |
| Ambient Humidity | ≤85% |
| Temperature Range | 14 °F to 230 °F (-10 ℃ to 110 ℃) |
| Temperature Compensation | 32 °F to 212 °F (0 ℃ to 100 ℃) |
| Temperature Accuracy | 41 °F to 140 °F (5 ℃ to 60 ℃): ±32.9 °F (±0.5 ℃), Others: ±33.8 °F (±1.0 ℃) |
| Reference Temperature | 77 °F (25 ℃), 68 °F (20 ℃), 64.4 °F (18 ℃) |
| Ambient Temperature | 41 °F to 95 °F (5 ℃ to 35 ℃) |
| Dimensions | 9.44 in × 6.69 in × 2.75 in (240 mm × 170 mm × 70 mm) |
| Weight | 1.32 lb. (600 g) |
