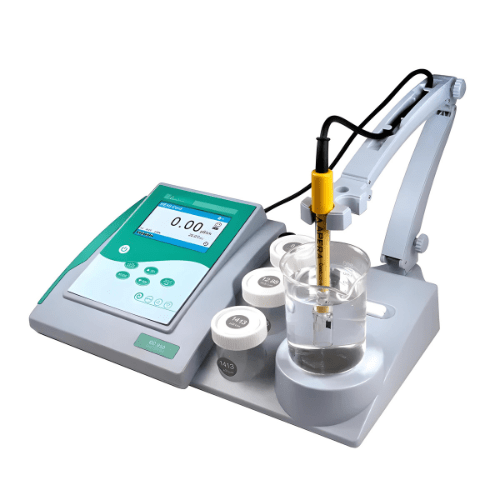

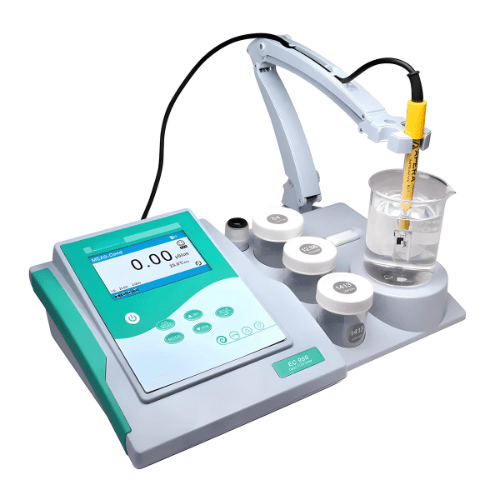

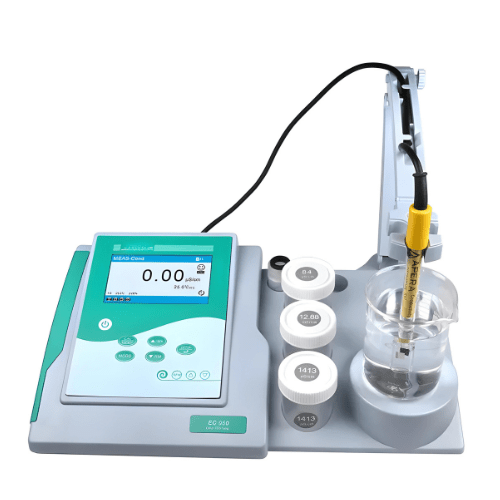

Overview
This Laboratory Conductivity Meter has 0 ppt to 100 ppt measuring range salinity, ± 1.0% FS ±1 digit accuracy, and 100 groups data storage.
Features
- Smart electrode holder, stirrer, buffer organizers
- Intuitive navigation with natural language and graphics
- Multi-language system (English, German, Spanish, Mandarin)
- Automatic calibration and temperature compensation
- Self-diagnosis for enhanced reliability
- Manual data logger, 100-group storage capacity
Technical Specifications
| Conductivity | |
| Measuring Range | Conductivity: 0 mS/cm to 200 mS/cm, automatically divided into five ranges, 0 μS/cm to 19.99 μS/cm; 20.0 μS/cm to 199.9 μS/cm; 200 μS/cm to 1999 μS/cm; 20.0 mS/cm to 199.9 mS/cm TDS: 0 g/L to 100 g/L Salinity: 0 ppt to 100 ppt |
| Resolution | 0.01 μS/cm or 0.1 μS/cm or 1 μS/cm; 0.01 mS/cm or 0.1 mS/cm |
| Accuracy | ±1.0% FS ±1 digit |
| Cell Constant | 0.1 cm-1 or 1 cm-1 or 10 cm-1 |
| Data Storage | 100 groups |
| Storage Content | Number, measuring value and temperature value |
| Power | Input: 120 V AC 60 Hz; Output: DC 9 V / 600 mA, 2.7 V A |
| Connector | BNC for conductivity; RCA for temperature |
| Temperature | |
| Measuring Range | 32 °F to 212 °F (0 ℃ to 100 ℃) |
| Resolution | 32.18 °F (0.1 ℃) |
| Accuracy | ±0.9 °F (±0.5 ℃) ±1 digit |
| Temperature Compensation Range | 32 °F to 122 °F (0 ℃ to 50 ℃) (Auto. or Manual) |
| Dimension | 7.67 in × 8.46 in × 3.93 in (195 mm × 215 mm × 100 mm) |
| Weight | 1.98 lb (900 g) |
