Overview

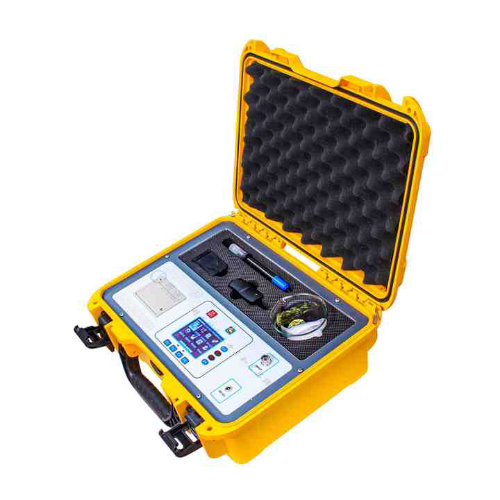

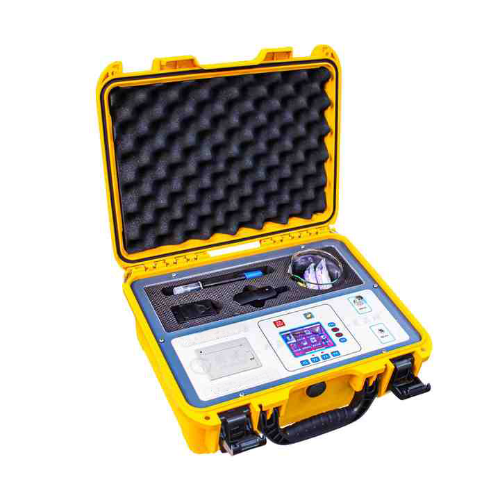

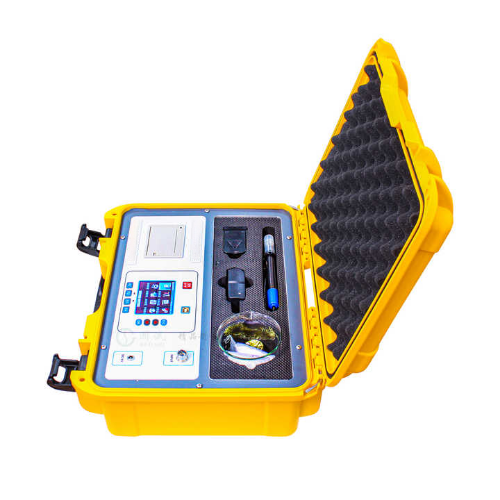

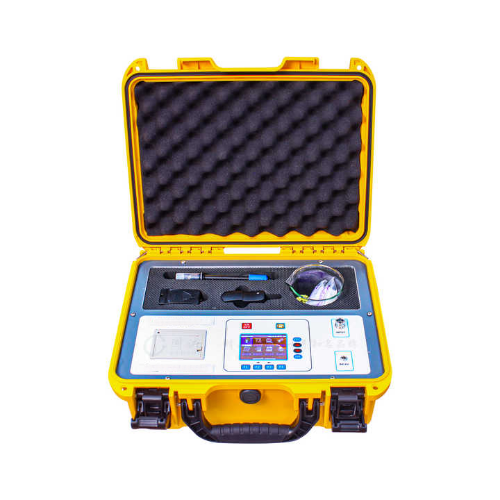

Hospitaity Enviro Tech Insulator Conductivity Tester is designed specifically for testing intelligent conductivity salt density. The system is equipped with an intelligent conductivity salt density calculation formula, which provides intuitive readings. The human-computer interaction adopts a true color TFT LCD screen, which is easy to operate, and all parameters and results are clear at a glance. The instrument comes with a micro printer for easy data storage and comparison. Provide two power supply methods: external power supply and built-in battery, convenient for laboratory and field testing.
Features
- Direct reading of surface insulator salt density
- Uses imported platinum electrodes for stability
- Measures salt density from 0.001 mg/cm² to 999 mg/cm² with 0.001-bit resolution
- Simultaneously measures conductivity and temperature
- Automatic range switching for accuracy at low salt density
- System auto-calibration on startup for precise measurements
- Large data storage for over 10,000 measurement sets
- Includes a micro printer for on-site result documentation
- Powered by external supply or internal battery for versatility
- Features a true color TFT LCD screen with customizable English display
- User-friendly interface for easy operation
- Backlight auto-lowering for energy savings and eco-friendliness
Technical Specifications
| Specifications | Details |
| Measurement Range | Salinity: 0.001 mg/cm² to 9.999 mg/cm² |
| Temperature | 0°F to 100 °F (32 °C to 212 °C) |
| Conductivity | 0 µS/cm to 100,000 µS/cm |
| Measurement Accuracy | Salinity: Resolution of 0.001, Full Scale Accuracy Better Than ±1% |
| Temperature | Resolution of 0.1 °F (0.18 °C), Full Scale Accuracy Better Than ±0.5 °F (0.9 °C) |
| Message Stream Mode | TFT Liquid |
| Display | 320 × 240 True Color TFT LCD Screen |
| Printer | Built-in Printer, Directly Prints Measurement Data |
| USB Communication | Connects to PC via USB to Read Measurement Data |
| Power | AC: 220 V 10% |
| Battery | DC: 6 No. 5 1.5 V Dry Batteries |
| Ambient Temperature | 0 °F to 50 °F (32 °C to 122 °C) |
| Relative Humidity | ≤80% RH |
| Storage Conditions | Ambient Temperature: -10 °F to 55 °F (14 °C to 131 °C) |
| Relative Humidity | ≤95% RH |
| Appearance Parameters | 13.0 in × 11.0 in × 5.2 in (330 mm × 280 mm × 132 mm) |
| Weight | About 5.51 lb (2.5 kg) |
