Overview

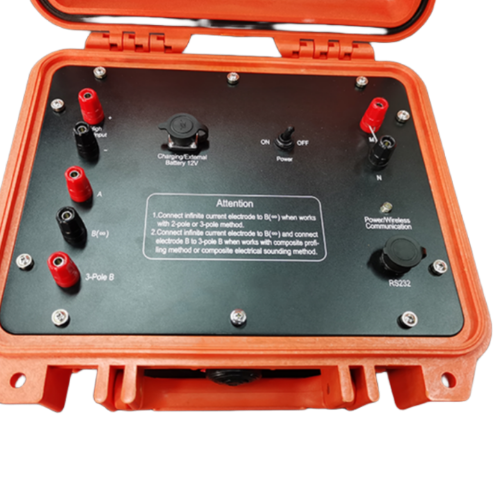

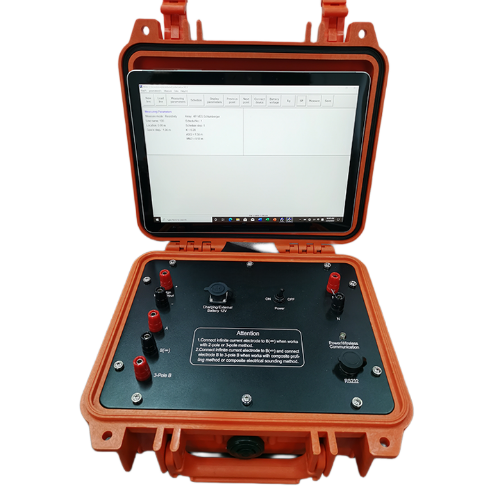

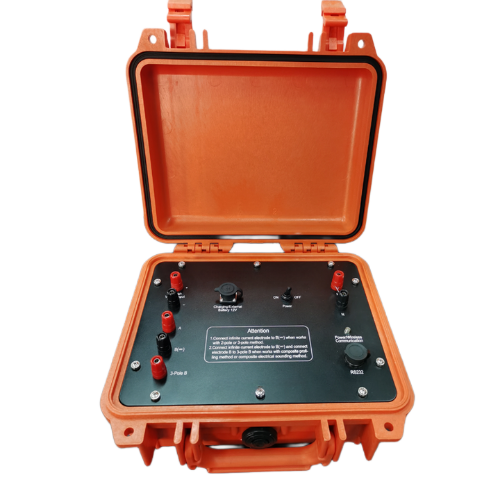

Hospitaity Enviro Tech Industrial Conductivity Tester is a new generation of DC resistivity equipment which is based on a series of advanced electrical equipment of resistivity survey and adopts 32-bit microcontroller technology and 24-bit A/D technology development.
Features
- WDDS-2: High-voltage current measurement tool
- Max voltage: ±1000 V for versatile applications
- Max current: ±3.5 A for diverse measurements
- Voltage channel offers 0.01 μV resolution
- Input resistance: ≥50 MΩ for minimal interference
- Operates from 14 °F to 122 °F (-10 ℃ to 50 ℃), 95% RH. Top of Form
Technical Specifications
| Parameter | WDDS-2 |
| Max Voltage | ±1000 V |
| Max Current | ±3.5 A |
| Voltage Channel | ±24 V, ±0.5% ±1 byte, 24 A/D |
| Voltage Max Sampling Resolution | 0.01 μV |
| Input Resistance | ≥50 MΩ |
| SP Compensation Range | ±10 V |
| Current Channel | 3.5 A, ±0.5% ±1 byte, 24 A/D |
| Current Max Sampling Resolution | 0.02 μA |
| Ports | A, B, M, N, DC, RS-232, USB, and others |
| Operating Temperature | 14 °F to 122 °F (-10 ℃ to 50 ℃) |
| Humidity | 95% RH |
| Usage | Underground Resources Detection |
| Application | Hydrology, Environmental Protection, and more |
| Size | 10.63 in x 9.6 in x 6.8 in (270 mm × 246 mm × 175 mm) |
