Overview

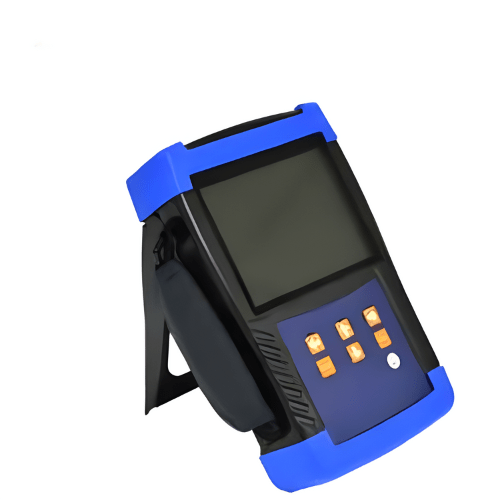

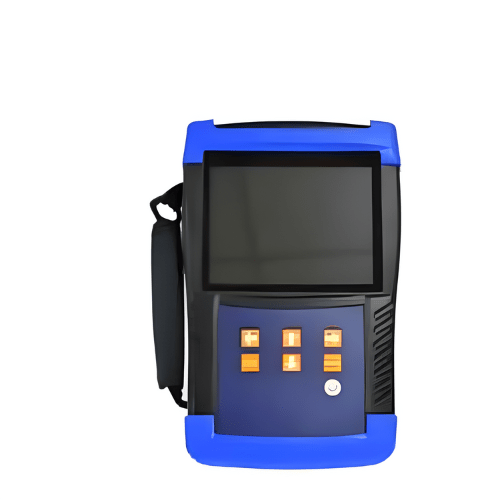

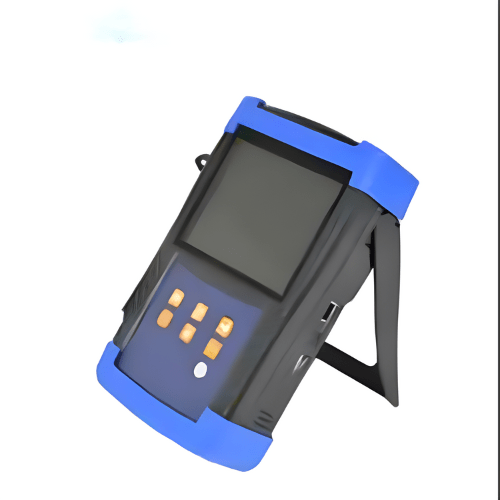

Hospitaity Enviro Tech Grounding Lead Wire Conductivity Tester is an innovative product specifically designed for electrical integrity testing of grounding devices, with all technical indicators meeting or surpassing relevant standard requirements. This produces large-capacity testing speed and high accuracy and is equipped with a la is equipped with a large-capacity act and is easy to carry.
Features
- Lithium or 220V AC powered, allows continuous conduction resistance tests.
- Output 4 current levels, max 10A, 25V; auto select for convenience
- Wide range and high accuracy, ranging from 500u Ω to 200 Ω
- Multiple protections: disconnection, power outage, overheating alarm, and more
- 6-inch industrial-grade LCD, high brightness, displays clearly in strong sunlight
- Equipped with an external printer for easy data printing
Technical Specifications
| Current Level | Measurement range |
| 10A | 500 uΩ to 200 mΩ |
| 5A | 10 mΩ to 1 Ω |
| 1A | 100 mΩ to 20 Ω |
| 100mA | 10 mΩ to 200 Ω |
| Accuracy | Reading ±0.2% + 2 words |
| Highest Resolution | 0.1 uΩ |
| Power Supply | Built-in lithium battery or external charger Charger input 100-240VAC |
| Charging Voltage | 16.8 V |
| Charging Current | ≤2A |
| Working Hours | 8 h |
| Weights | 3.527 lbs (1.6 kg) |
| Sizes | 9.68 in x 6.14 in x 2.44 in (246 mm x 156 mm x 62 mm) |
