Overview

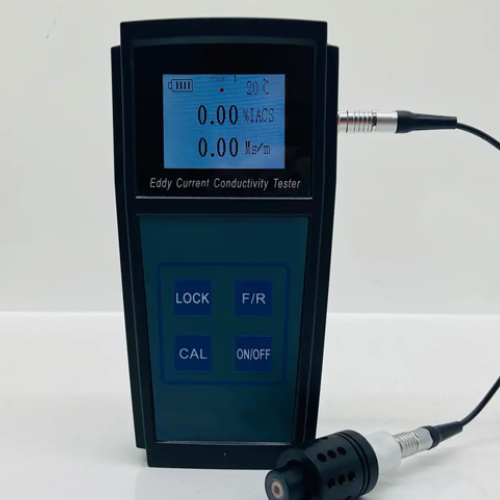

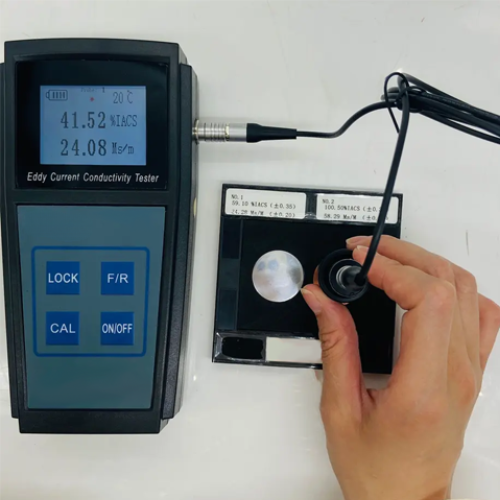

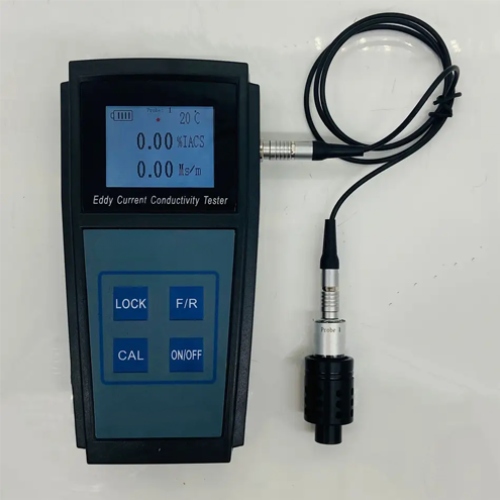

Hospitaity Enviro Tech Eddy Current Copper Conductivity Tester Meter is a convenient and quick tool for measuring material properties like separation, quality control, and state checks. It uses the electromagnetism testing principle and is designed for non-ferromagnetic materials. The meter uses 60 KHz, the aviation industry standard, and can test electrical conductivity and resistivity simultaneously. It includes intelligent temperature and lift-off compensations, ensuring accuracy. The large typeface and backlight illumination design make it easy to take testing data even in low-light conditions. The high-performance battery ensures long-lasting use, and its mini size makes it easy to carry and grasp. The HEC-100 model supports two operating languages (English and Chinese) and can store 1000 measurement data points. Users can also use USB to connect the meter to a PC for creating testing reports.
Features
● Absolute measurement of the electrical conductivity of nearly all non-ferrous metals.
● (Ti-Ag) In the aerospace and automotive industries, monitor the process of heat treatment and the strength and hardness of aluminum alloy.
● Test the conductivity when the aluminum has not been oxidized. measurement of the purity of non-ferrous metals.
● Test the resistivity of conductive materials.
● Analyze the thermal properties of materials.
Technical Specifications
| Operating frequency | 60 Khz |
| Display screen | Monochrome |
| Instrument case | Anti-intense impact, water-proofing polyesterMatch the fixed belt the leather protective covering. |
| Power supply | High capacity, high performance lithium polymer batteryNo back light illuminate may keep on working about 100 hours. |
| Measuring range | 1% IACS to 105% IACS (0.58 MS / m to 61 MS / m) |
| Distinguishing rate | 0.1% IACS |
| Measuring accuracy | 41 °F to 104 °F (5 °C to 40 °C)23% IACS: ±0.5% IACS
100% IACS: ±8% IACS |
| Temperature compensation | 41 °F to 104 °F (5 °C to 40 °C)Automatic compensation function |
| Normal work environment | Relative humidity0 to 95%
Operating temperature 41 °F to 104 °F (5 °C to 40 °C) |
| Language | Chinese, English |

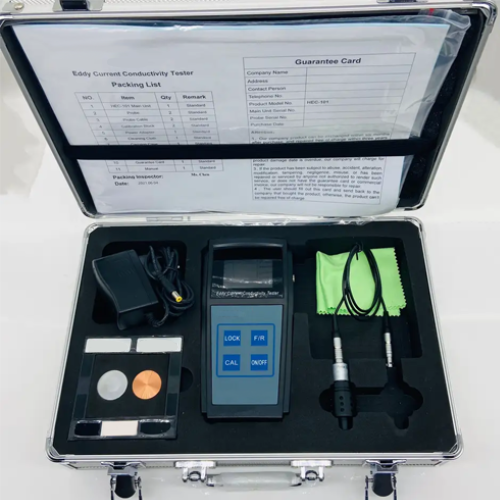

| Fitting | Portable box; probe,probe in cable,
operating manual, conductivity standard sample adapter Conductivity sample installs in the instrument, to verify and guarantee temperature compensation |
| Probe Diameter | 0.5 in (12.7 mm) |
| Weight | 0.66 lb (0.03 Kg)Contain battery |
| Dimension | 7.09 in x 2.99 in x 1.38 in (180 mm x 76 mm x 35 mm) |
