Overview
Hospitaity Enviro Tech eddy conductivity meter is the upgrading product which have the leading technology performance, can totally instead of the similar products overseas. We are adding a new Frequency testing of 500KHz, this can accurately measure the thinner test pieces. The Application range is more extensive after adding continuity measurement and camber measurement mode. These products commonly used in industries of metallurgy, machinery, electric power, aviation and aerospace, nuke, military, etc.
Features
- Beautiful appearance
- simple and convenient to use
- Big screen
- big character
Technical Specifications
| Measurement range for conductivity | 0.5% IACS to 112% IACS or 0.3 mS/m to 65 mS/m or resistivity: 0.01538 Ω x mm²/m to 3.33333 Ω x mm²/m |
| Display | Large screen LCD, with back-light designed, can display multiple items of important parameter simultaneously |
| Working Frequency | 60 Hz and 500 KHz, sine wave |
| Resolution | 0.1% IACS 0.001% IACS |
| Measuring Precision | ±0.5% reading |

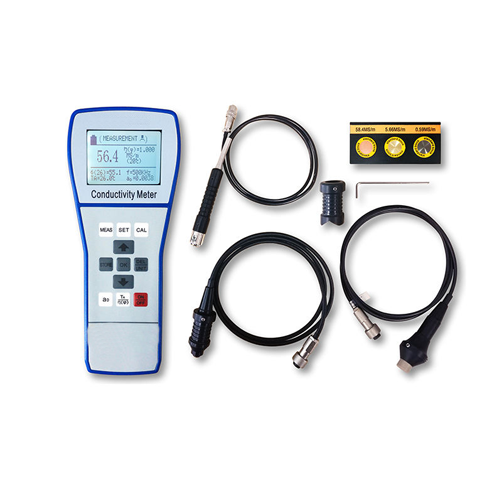

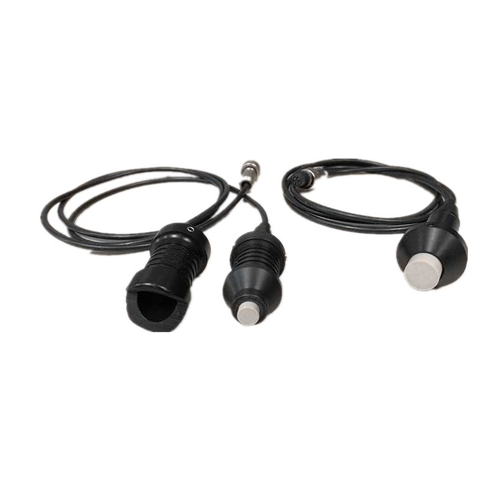

| Probes | B type machine with diameter 14 mm working frequency of 60 KHz and diameter 0.31 in (8 mm) working frequency of 500 KHz of a probe, the probe is made of imported material, wear-resistant and high temperature resistant, and can be replaced intelligently |
| Power supply | Provided lithium-ion battery of 3.7 V, 2200 mA/h, continuous working about 12 hours |
| Temperature Probe | Handhold surface temperature sensor |
| PC Communication | RS 232 interface, baud rate: 2400 bps |
| Shell | Plastic Shell |
| Host Weight | 1.1 lb (0.5 kg) |
| Host Size | 8.6 in × 3.7 in × 2.16 in (220 mm × 95 mm × 55 mm) |
