Features

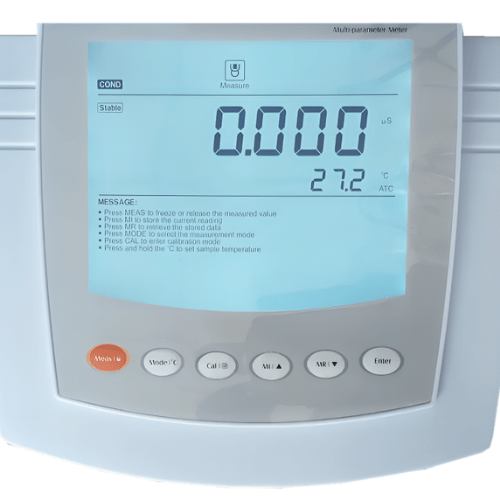

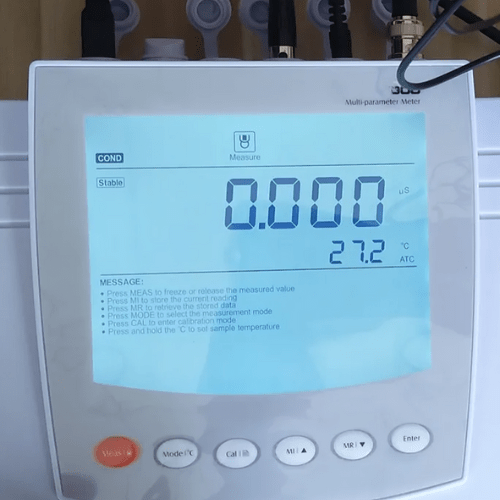

- Backlit LCD for easy reading
- 1-5 points calibration, auto-recognizes solutions
- Selectable parameters, TDS, and salinity modes
- Automatic Temperature Compensation for accuracy
- Stability indicator for measurement reliability
- Calibration Due Alarm for regular calibration
- Auto-Hold locks measurement endpoint
- Calibration report details standard and constant
- Setup menu for customizable parameters
- Reset restores factory default settings
- Memory stores up to 500 data sets
- USB interface for data transfer
Technical Specifications
| Conductivity | |
| Range | 0.01 µS/cm to 20.00 µS/cm, 200.0 µS/cm, 2000 µS/cm, 20.00 mS/cm, 200.0 mS/cm |
| Accuracy | ±0.5% F.S |
| Resolution | 0.001, 0.01, 0.1, 1 |
| Calibration Points | 1 to 5 points |
| Calibration Solutions | 10 µS/cm, 84 µS/cm, 1413 µS/cm, 12.88 mS/cm,111.8 mS/cm |
| TDS | |
| Range | 0 ppm to 10.00 ppm, 100.0 ppm, 1000 ppm, 10.00 ppt, 100.0 ppt (Max. 200 ppt) |
| Accuracy | ±1% F.S |
| Resolution | 0.01, 0.1, 1 |
| TDS Factor | 0.1 to 1.0 (Default 0.5) |
| Salinity | |
| Range | 0.00 ppt to 80.00 ppt, 0.00 psu to 42.00 psu |
| Accuracy | ±1% F.S |
| Resolution | 0.01, 0.1, 1 |
| Measurement Modes | Practical salinity (psu) or Natural seawater (ppt) |
| Resistivity | |
| Range | 0.00 MΩ to 20.00 MΩ |
| Accuracy | ±1% F.S |
| Resolution | 0.01, 0.1, 1 |
| General | |
| Compensation Modes | Linear or Pure water |
| Cell Constant | K=0.1, 1, 10 or Custom |
| Data Hold | Manual or Auto-Endpoint |
| Stability Criteria | Low or High |
| Calibration Due Alarm | 1 day to 31 days or Off |
| Reset Function | Yes |
| Memory | Stores up to 500 data sets |
| Output | USB communication interface |
| Connector | 6-pin mini plug |
| Display | LCD |
| Power | DC 5 V, using AC adapters, 220 V AC / 50 Hz |
| Temperature | |
| Range | 32 °F to 221 °F (0 °C to 105 °C) |
| Accuracy | 33.8 °F (±0.5 °C) |
| Resolution | 32.18 °F (0.1 °C), 0.1 °F (-17.72 °C) |
| Calibration Points | 1 point |
| Calibration Range | Measured value 50 °F (±10 °C) |
| Temperature Compensation | 32 °F to 212 °F (0 °C to 100 °C), Manual or Automatic |
| Temperature Coefficient | 0.0% to 10.0% / °C |
| Reference Temperature | 68 °F or 77 °F (20 °C or 25 °C) |
| Dimensions | 8.26 in × 7.40 in × 2.36 in (210 mm × 188 mm × 60 mm) |
| Weight | 3.30 lb (1.5 kg) |
