Overview

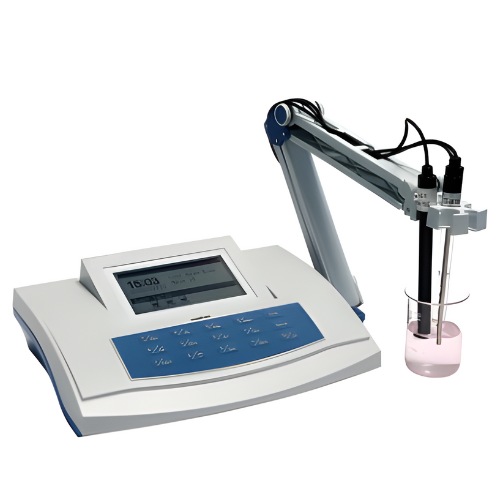

Automatic Calibration Digital pH Meter is an electrochemical analyzer used to measure the ion concentration in a solution. The measurement of H + also belongs to the ion meter, we generally call its PH meter or acidity meter, the general people refer to the ion meter is measured in addition to H + other than the electrochemical instruments.
Features
- Measures pH/pX, ion concentration, potential, and temperature accurately
- Dot-matrix LCD, light touch keys, power-failure protection for convenience
- Recognizes pH buffers, calibrates up to 5 points, automatic compensation
- Switches between various concentration units for flexibility
- Supports multiple ion modes and user-set specific ion mode
- Provides ion concentration measurements using different modes
- Three measuring modes cater to different requirements effectively
- Manages, views, prints data; saves up to 200 sets
- USB interface for computer connectivity with specific software
Technical Specifications
| Parameters | pX/ Ion concentration /mV (ORP)/ ºC |
| Range | pX: -2.000 to 20.000 mV: ±1999.99 Ion concentration: (0 to 1999.0), unit ug/L, mg/L, g/L, mol/L, mmol/L Temp: -23.0 °F to 230.0 °F (-5.0 °C to 110.0 °C) |
| Resolution | pX: 0.001 pH/pX mV: 0.1 Temp: 32.18 °F (0.1 °C) |
| Accuracy | pX: ±0.002pH/pX mV: ±0.03%FS Ion concentration: ±0.5% Temp: 32.36 °F (±0.2 °C) |
| Ion Mode | Provide several general ion modes, such as: H+, Ag+, Na+, K+, NH4+, Cl-, F-, NO3-, BF4-, CN-, Cu2+, Pb2+, Ca2+, etc… and support customer ion mode |
| Temp Compensation | Manual/Auto: 32 °F to 140 °F (0 °C to 60 °C) |
| Calibration | Five-point calibration |
| GLP Standard | Yes |
| Data Storage | 1400 sets of data |
| Buffer Recognition | Automatic: GB, NIST, DIN |
| View, Delete Print | Yes |
| Interface | USB |
| Power | Universal power adapter (9 V DC, 800mA) |
| Dimension | 1.02 in × 8.46 in × 3.62 in (280 mm × 215 mm × 92 mm) |
| Weight | 2.20 lb (1 kg) |
| Standard Configuration | PF-1-01 Fluoride ISE; 232-01 Reference Electrode; T-818-B-6 ATC Probe; JB-1A Stirrer |
