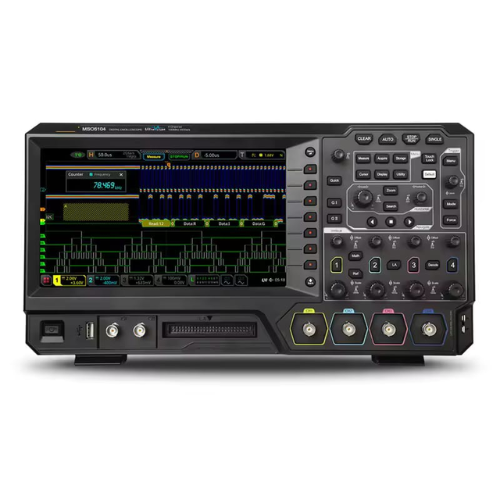

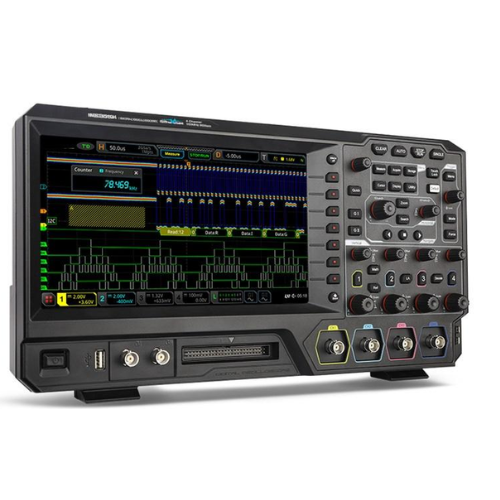

Features
- Supports 16 digital input channels for mixed signal analysis
- Dual-channel arbitrary waveform generator capability (optional)
- High waveform capture rate of 500,000 wfms/s for real-time accuracy
- 9-inch capacitive multi-touch screen with gesture control
- Captures 500 ps glitches under all time base settings
- Up to 200 Mpts memory depth ensures detailed waveform recording
Technical Specifications
| Type | Virtual Oscilloscope |
| Analog Bandwidth | 70 MHz to 200 MHz |
| Number of Channels | 2 or 4 analog channels, 16 digital channels |
| Sampling Mode | Real-time sampling |
| Maximum Sample Rate | 8 GSa/s (single-channel), 4 GSa/s (half-channel), 2 GSa/s (all channels) |
| Maximum Memory Depth | Analog: 200 Mpts (single-channel), 100 Mpts (half-channel), 50 Mpts (all channels); Digital: 25 Mpts (all channels) |
| Waveform Capture Rate | ≥500,000 wfms/s |
| Real-Time Waveform Recording | ≥450,000 wfms (single-channel) |
| Peak Detection | 500 ps glitch capture |
| Display Type | 9 in capacitive multi-touch screen |
| Display Resolution | 1024 × 600 |
