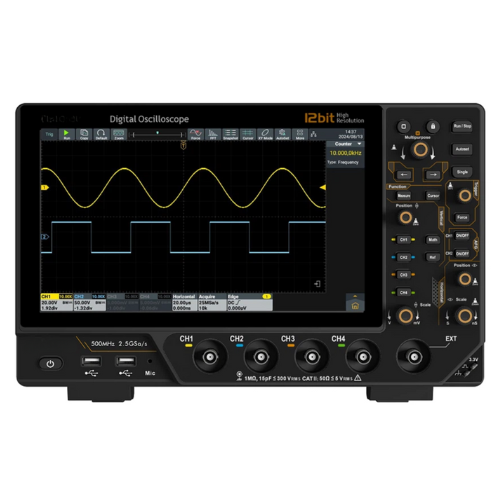

High-Resolution Touchscreen Digital Oscilloscope 500MHz – Hospitality Enviro Tech

Superior Performance

• 100MHz to 500MHz bandwidth, 2.5GS/s real-time sampling rate.

• Based on the advanced oscilloscope architecture: lower noise, higher storage, faster refresh.

• Standard hardware 12-bit ADC, providing 16 times the measurement accuracy of a standard 8-bit oscilloscope, delivering better waveform details and more accurate small signal measurements.

• 100M storage depth, up to 500,000wfms/s waveform refresh rate, ensuring clear signal capture.

• Vertical accuracy is 500µV/div to 10 V/div, and time base range is 500 ps/div to 1000 s/div.

• 1M-point FFT analysis ensures accurate frequency component display.

• 50Ω impedance matching reduces reflection, improves accuracy, and minimizes interference.

• 256-level grayscale and color persistence enhance waveform visualization.



Android Based, Extensive Expandability

• Built-in microphone and speaker, with support for external devices like mouse and keyboard, greatly enhancing efficiency.

• Enhanced file management for easier viewing, editing, and exporting.

• Equipped with HDMI, USB device1, USB Host3, Trig Out (P/F), LAN, supporting Web Control and SCPI command tools.

• Screen video recording for easy documentation and sharing.

• Optional wireless module (Wi-Fi/Bluetooth) supports FTP, network printers, mobile hotspots, and more.



Comprehensive Features

• Integrates oscilloscope, dual-channel 50MHz AFG (optional), frequency counter, voltmeter, FFT spectrum analyzer, and protocol analyzer.

• Rich triggering: edge, video, pulse width, slope, under-amplitude, over-amplitude, timeout, Nth edge, logic, and RS232/UART, I2C, SPI, CAN, LIN.

• Waveform cloning and Bode plot functions (AFG models).

• Up to 40 auto measurements, full memory hardware measurement function, math operations, built-in enhanced FFT, and peak search.

• Enhanced FFT and ZOOM features provide clearer waveform display and cursor information.

• Convenient measurement statistics, with measurement indicators, cursor gating, and more measurement prompts.

• Supports Type-C power, floating measurements, suitable for outdoor and varied applications.



Human-machine Interaction and Design

• Ultra-thin design at just 10 cm, saving valuable workspace.

• 10.1-inch touchscreen with multi-touch support for an enhanced interactive experience.

• New UI design with an attractive interface, multi-touch gestures, and customizable shortcuts for easier use.

Technical Specifications:



	HETMCO-210(A)	HETMCO-210(B)	HETMCO-210(C)	HETMCO-210(D)	HETMCO-210(E)	HETMCO-210(F)	HETMCO-210(G)	HETMCO-210(H)
Bandwidth	100MHz		200MHz		350MHz		500MHz
Sample Rate	Max 2.5GS/s for all models
Vertical Resolution	12 bits
Acquire Mode	Sample, Peak, High Res, Average
Waveform Refresh Rate	50,000 wfms/s
Channel	2	4	2	4	2	4	2	4
Multi-level Gray Scale & Color Temperature Display	256 level
Input Impedance	1MΩ±2%, parallel with 15pF±5pF, 50Ω±2%
Max Input Voltage	1MΩ ≤ 300Vrms
Probe Attenuation Coefficient	10xU~50kX, step by 1–2–5, support custom
Scanning Speed (S/div)	500ps/div – 1000s/div, step by 1–2–5
Storage Depth	100M
Vertical Sensitivity	500μV/div ~ 10V/div (at input)
Trigger Type	Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth, Logic, RS232/UART, I2C, SPI, CAN, LIN
Bus Decoding	UART, I2C, SPI, CAN, LIN
Trigger Mode	Auto, Normal, Single
Video Trigger Support	NTSC, PAL, SECAM
Cursor Measurement	ΔV, ΔT, ΔT&ΔV between cursors, auto cursor, support XY/FFT/ZOOM window based on screen percentage
Auto Measurement	Period, Frequency, +Width, –Width, Rise Time, Fall Time, Scr Duty, +Duty, –Duty, Vavg, Vpp, VRMS, Overshoot, Vmax, Vmin, Vtop, CycRms, Vbase, Vamp, Preshoot, Std Dev, +Pulse Cnt, –Pulse Cnt, Rise Cnt, Fall Cnt, Area, Cyc Area, Delay(A↑–B↑), Delay(A↑–B↓), Delay(A↓–B↑), Delay(A↓–B↓), Phase(A↑–B↑), Phase(A↑–B↓), Phase(A↓–B↑), Phase(A↓–B↓), FRR(A↑–B↑), FRF(A↑–B↓), FFR(A↓–B↑), FFF(A↓–B↓), LRR(A↑–B↑), LRF(A↑–B↓), LFR(A↓–B↑), LFF(A↓–B↓)
Math Operation	+, –, ×, ÷, Intg, Diff, Sqrt, FFT, User-defined functions
Communication Interface	HDMI, USB Device ×1, USB Host ×3, Trig Out (P/F), LAN, Type-C power
WiFi	Optional Support
Display	10.4 in (1024×600) LCD
Dimensions (W×H×D)	325 mm × 111.5 mm × 209 mm
Weight	Approx. 3.2 kg (without accessories)
