Technical Specifications
| Parameters | Details | |||
| Bandwidth (-3 dB) | 125 MHz | 250 MHz | 125 MHz | 250 MHz |
| Channel | 2 | 4 | ||
| Max Sample Rate | 2GSa/s(single-channel)1GSa/s (dual-channel) 500MSa/s(full-channel) | |||
| Acquire Modes | Sample, Peak, High Res, Average, Segmentation | |||
| Max. Waveform Capture Rate | 700,000 wfms/s (Max.) | |||
| Vertical Sensitivity | 200 μV/div to 10 V/div | |||
| Vertical Resolution | 12 bits | |||
| Relay time accuracy | +25 ppm (typical) | |||
| Sampling rate range | 1ns/div – 1000s/div, step by 1-2-5 | |||
| DC Gain Accuracy | 3% (≤ 1 mV), 2% (≥ 2 mV) | |||
| Input Impedance | 1 MQ+2%, parallel with20 pF+5 pF | |||
| Probe Attenuation Coefficient | 1.00uX-1M.00X, step by 1-2-5, support custom | |||
| Max Memory Depth | 100 M points | |||
| Time base Range | 1 ns/div to 1000 s/div | |||
| Trigger Types | Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth, Logic, RS232/UART, 12C, SPI CAN, LIN | |||
| Bus Decoding | RS232/UART, I²C, SPI, CAN, LIN | |||
| Auto Measurements | Period, Frequency, +Width, -Width, Rise Time, Fall Time, Scr Duty, +Duty, -Duty, Vavg, Vpp, VRMS, Overshoot, Vmax, Vmin, Vtop, CycRms, Vbase, Vamp, Preshoot, Std Dev, +Pulse Cnt, -Pulse Cnt, Rise Cnt, Fall Cnt, Area, Cyc Area, Delay(A1-B1), Delay (At-Bl), Delay (Al-B1), Delay (Al-Bl), Phase(A1-B1), Phase(A1-Bl), Phase(Al-Bt), Phase (Al-Bl), FRR(AT-B1), FRF(A1-Bl), FFR(Al-BT), FFF(Al-Bl), LRR(AT-BT), LRF(A1-Bl), LFR(AL-BT),
LFF(Al-Bl) |
|||
| Waveform Math | +,-%/,&8&, ]|~ !, Intg, Diff, Sqrt, Function operation (Lg / Ln / Exp / Abs / Sine / Cosine / Tan), FFT, FFT rms, User Defined, digital filter (low pass, high pass, band pass, band reject) | |||
| Frequency Counter | 6-digit frequency counter, Maximum frequency: maximum analog bandwidth of oscilloscope | |||
| Voltmeter | Support DC, AC+DCrms, ACrms, Resolution: 4 digits (ACV/DCV) | |||
| Arbitrary Waveform Generator (Optional) | ||||
| Max Frequency Output | 30 MHz single | |||
| Sample Rate | 160 MSa/s | |||
| Standard Waveforms | Sine, Square, Ramp, Pulse, Noise | |||
| Arbitrary Waveforms | 28 built-in, user-defined (2-8K points length) | |||
| Vertical Resolution | 14 bits | |||
| Impedance | 50 Ω (type) | |||
| Amplitude Range | 2 mVpp to 10 Vpp (1 MΩ), 1 mVpp to 5 Vpp (50 Ω) | |||
| Modulation | AM, FM, PM, FSK | |||
| Arb Waveform | 1uHz ~ 10MHz | |||
| Logical Analyzer (Optional) | ||||
| Channels | 16 (D0-D15) (D0 to D7, D8 to D15) | |||
| Threshold Range | ±20.0 V, 10 mV step | |||
| Min. Voltage Swing | 500 mVpp | |||
| Max. Dynamic Range | ±+40V peak CAT I, transient overvoltage 800Vpk | |||
| Max. Input Voltage | ±30 V + threshold | |||
| Input Impedance | 100 kΩ, 8 pF | |||
| Vertical Resolution | 1 bit | |||
| Other | ||||

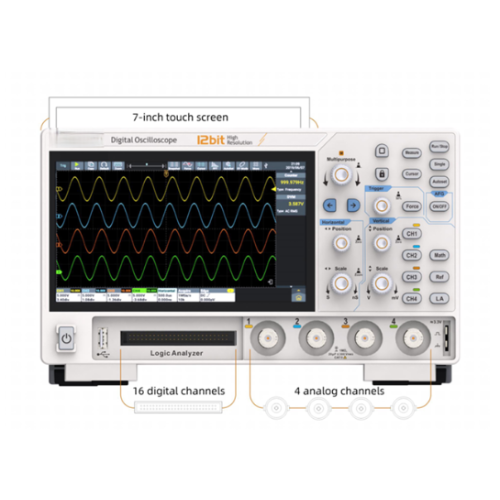

| Display | 7-inch capacitive multi-touchscreen (1024×600) | |||

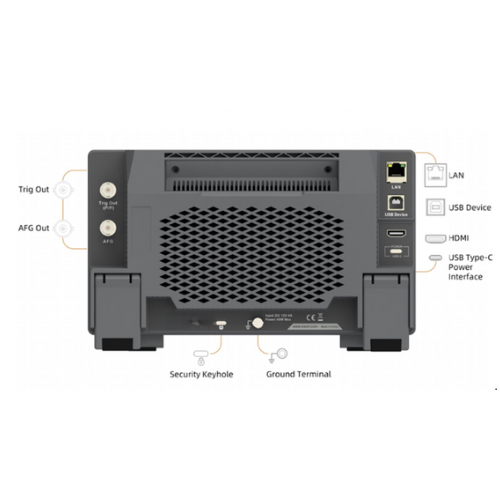

| Communication Interfaces | HDMI, USB Device, USB Host, LAN, Trig Out (P/F) | |||
| Power Supply | USB Type-C (requires external 12V/4A power bank) | |||
| Dimensions (WxHxD) | 10.2 in x 6.3 in x 3.1 in (260 mm x 160 mm x 78 mm) | |||
| Weight | (3.3 lbs)1.5 kg (unit only, package excluded) | |||
