Overview

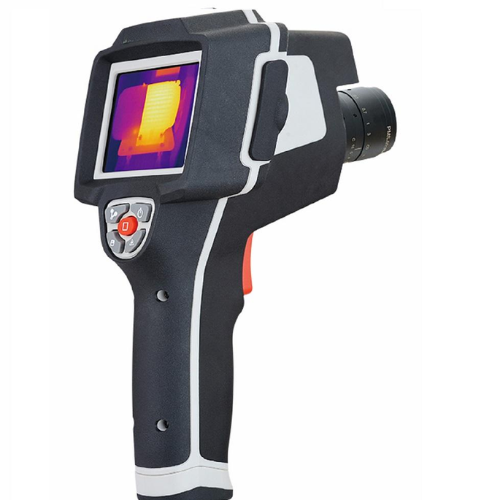

Hospitality Enviro Tech High Resolution 640 × 512 Infrared Thermal Imaging Camera is designed for capturing precise thermal images with outstanding clarity. This device offers a fixed focus mode, a 25 mm focal length, and supports multiple color palettes for flexible imaging. It features a capacitive 3.5 in. LCD touchscreen with 640 × 480 resolution for enhanced visualization. With its wide dynamic range CMOS sensor, this product ensures reliable imaging across challenging environments. The camera provides a measurement range from 1112℉ to 3632℉ with high accuracy, making it suitable for industrial, scientific, and safety applications.
Features
- Provides high resolution 640 × 512 pixel thermal imaging for clear and accurate results.
- Supports a wide object temperature range of 1112℉ to 3632℉ with ±3.6℉ accuracy.
- Equipped with a 3.5 in. capacitive touchscreen LCD (640 × 480 pixels) for easy operation.
- Offers multiple color palettes including IRON, Rainbow, Grey, Sepia, and more.
- Utilizes a wide dynamic range CMOS sensor for precise spectral detection.
- Fixed focus mode with 25 mm focal length for consistent image quality.
- Operates with DC 9V to 12V input voltage for flexible power options.
Technical Specifications
| Infrared Resolution | 640 × 512 pixels |
| Field Of View (FOV) / Min. Focus Distance | 22° × 17.6° |
| Spatial Resolution (IFOV) | 0.6 mrad |
| Thermal Sensitivity / NETD | <1℃ @ +600℃ |
| Image Frequency | 30 Hz |
| Focus Mode | Fixed |
| Focal Length | 25 mm |
| Focal Plane Array (FPA) / Spectral Range | Wide Dynamic Range CMOS / 0.8–1.1 μm |
| Display | 3.5 in. Capacitive Touchscreen LCD, 640 × 480 pixels |
| Color Palettes | IRON, Rainbow, Grey, GreyInverted, Sepia, Blue_Red, Hot_Cold, Humidity |
| Input Voltage | DC 9V to 12V |
| Object Temperature Range | 1112℉ to 3632℉ (600℃ to 2000℃) |
| Accuracy | ±3.6℉ (±2℃) or ±2% of reading |
