Overview

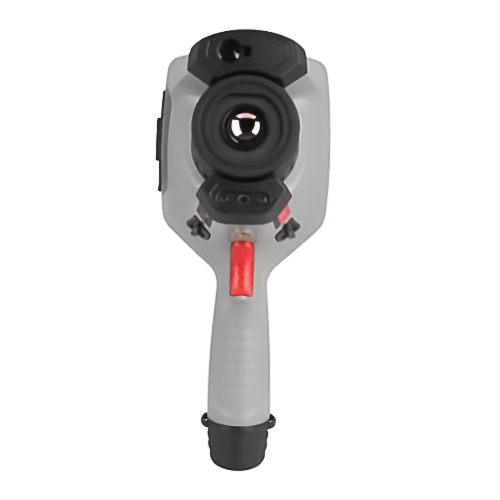

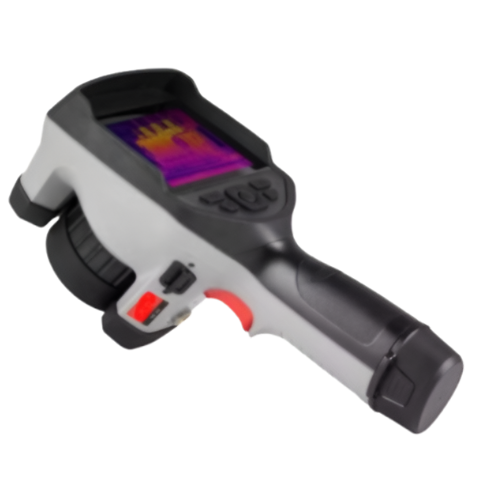

Hospitality Enviro Tech High-Resolution Handheld Infrared Thermal Camera delivers precise thermal imaging with advanced measurement capabilities. It features a 384×288 infrared sensor, 5MP visible light camera, and a fast 50/60Hz frame rate for real-time thermal observation. This device measures temperatures from -4°F to 1200°F (-20°C to 650°C, extendable), with ±2°C or ±2% accuracy. It offers spatial resolution of 1.12mrad (or 0.67mrad in super pixel mode), digital zoom from 1× to 10×, and a wavelength range of 8–14 μm. Compact yet robust, it weighs ≤2.43 lb (≤1.1 kg including battery) and operates reliably between 5°F and 122°F (-15°C to +50°C). The camera’s focus range spans 0.33 ft to infinity (0.1m–∞), with a field of view of 25°×19° for versatile imaging.
Features
- High-resolution 384×288 infrared sensor with super pixel modes up to 1280×960.
- Integrated 5MP visible light camera for dual imaging.
- Fast 50/60Hz frame rate for smooth thermal monitoring.
- Wide temperature measurement range from -4°F to 1200°F (-20°C to 650°C).
- Accurate readings with ±2°C or ±2% precision.
- Digital zoom 1×–10× for detailed inspection.
- Compact, lightweight design at ≤2.43 lb (≤1.1 kg) including battery.
- Operates in ambient temperatures from 5°F to 122°F (-15°C to +50°C).
- Field of view 25°×19° with focusing range from 0.33 ft to infinity (0.1m–∞).
Technical Specifications
| Parameter | Specification |
| Overall Size | 4.57 × 6.89 × 10.94 in (W116 × D175 × H278 mm) |
| Total Weight | ≤2.43 lb (1.1 kg including battery) |
| Resolution (IR) | 384 × 288 pixels (standard) / 640 × 480 pixels (optional) |
| Super Pixel Function | 768 × 576 / 1280 × 960 pixels |
| Visible Light Camera | 5 million pixels (5 MP) |
| Thermal Sensitivity (NETD) | ≤0.04°C (40 mK) |
| Wavelength Range | 8–14 μm |
| Spatial Resolution | 1.12 mrad / 0.67 mrad (super pixel mode) |
| Field Of View (FOV) | 25° × 19° |
| Focusing Range | 0.1 m–∞ (0.33 ft–∞) |
| Digital Zoom | 1× to 10× |
| Frame Rate | 50/60 Hz |
| Temperature Range | -4°F to +1202°F (-20°C to +650°C), extendable to 2192°F (1200°C) |
| Temperature Accuracy | ±2°C or ±2% of reading (whichever is greater) |
| Operating Temperature | 5°F to 122°F (-15°C to +50°C) |
