Overview

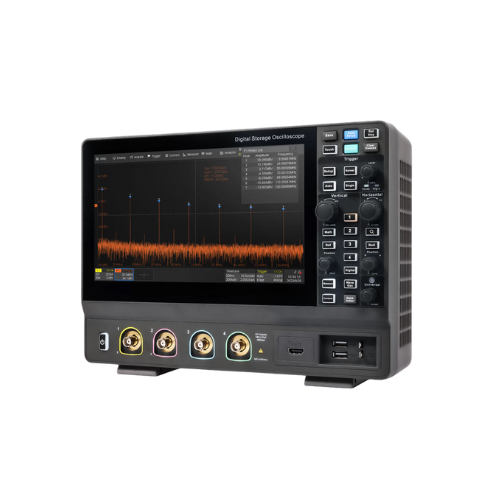

Hospitality Enviro Tech’s high resolution 200 mhz digital storage oscilloscope delivers outstanding performance with its advanced 12-bit Analog-to-Digital conversion technology, ensuring enhanced accuracy and precise measurements. Equipped with bandwidths up to 200 MHz and a maximum sample rate of 2 GSa/s, it supports multiple operating modes for flexibility in demanding environments. The system is designed with a powerful waveform capture rate of 120,000 wfm/s in normal mode and up to 500,000 wfm/s in sequence mode, enabling quick detection of signal anomalies.
Features
- High-resolution 12-bit display for improved measurement accuracy
- Large 10.1-inch TFT-LCD with capacitive multi-touch screen
- Intuitive and user-friendly operation with modern UI design
- Advanced triggering system with multiple intelligent trigger modes
- Multi-level intensity grading and color temperature display
- Segmented acquisition mode for efficient waveform capture
- Built-in waveform recording and playback function
- Multiple math functions and formula editor support
- Rich data analysis tools for professional measurements
- Supports both analog and optional digital channels
- Expandable functionality with optional waveform generator
- Remote operation capability via LAN and USB connectivity
Technical Specifications
| Analog Channels | 2 or 4 channels + EXT input |
| Bandwidth | 100 MHz or 200 MHz |
| Vertical Resolution | 12-bit |
| Sample Rate (Max.) | 2 GSa/s (single channel), 1 GSa/s (dual channel), 500 MSa/s (four channel) |
| Memory Depth (Max.) | 100 Mpts/ch (one channel), 50 Mpts/ch (two channel), 25 Mpts/ch (four channel) |
| Waveform Capture Rate (Max.) | 120,000 wfm/s (normal mode), 500,000 wfm/s (sequence mode) |
| Trigger Types | Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Delay, Setup/Hold time, Serial |
| Serial Trigger & Decode | I²C, SPI, UART, CAN, LIN, CAN FD (decode only), FlexRay (decode only) |
| Measurement Parameters | 50+ (statistics, histogram, trend, track supported) |
| Math Functions | 2 Mpts FFT, +, −, ×, ÷, d/dt, √, integration, negation, identity, interpolation, MaxHold, MinHold, ERES, average, formula editor |
| Data Analysis | Search, Navigate, History, Mask Test, Counter, Bode Plot, Power Analysis |
| Digital Channel (Optional) | 16-channel, sample rate up to 1 GSa/s, record length up to 10 Mpts |
| USB AWG Module (Optional) | 1 channel, 25 MHz, sample rate 125 MHz, 16 kpts, isolated output |

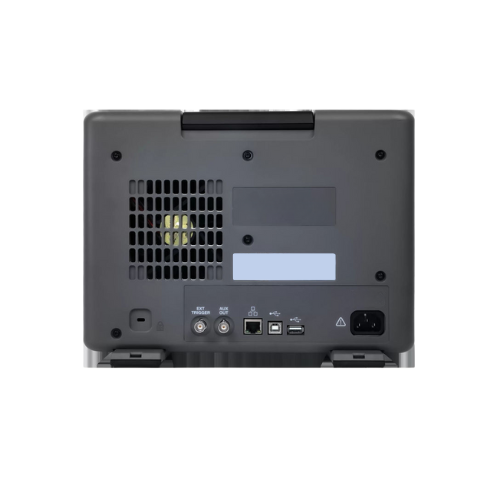

| Interfaces (I/O) | USB 2.0 Host x3, USB 2.0 Device, LAN (10/100 M), External trigger, Auxiliary outputs (TRIG OUT, PASS/FAIL), SBUS |
| Probe (Standard) | Passive probe PP510 (4-ch), Passive probe PP215 (2-ch) |
| Display | 10.1 in TFT-LCD, capacitive touch screen, 1024 × 600 resolution |
| Operating Mode | Complete machine delivery |
| Material | Special plastic case |
| Power Supply | Standard AC power |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Dimensions | 14.5 in × 8.6 in × 6.1 in (36.8 cm × 21.8 cm × 15.5 cm) |
| Weight | 7.7 lb (3.5 kg) |
