Overview

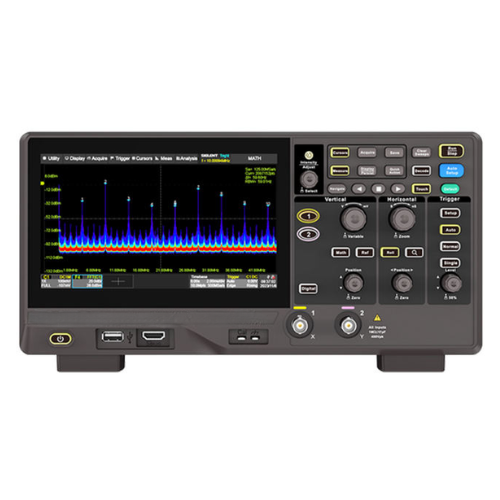

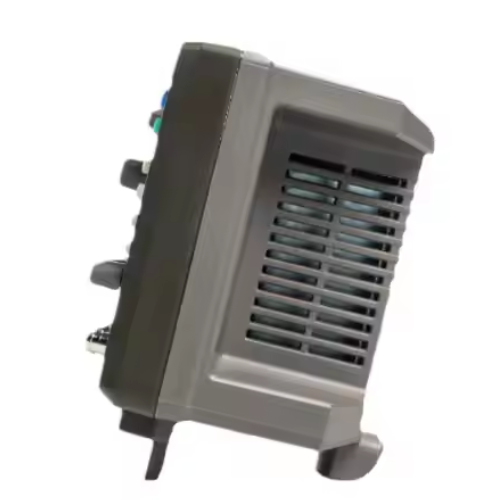

Hospitality Enviro Tech High-Resolution 12-Bit Digital Storage Oscilloscope with 2 to 4 channels and a maximum sampling rate of 2 GSa/s is designed for advanced signal testing and analysis. This product offers high accuracy and clarity, making it suitable for capturing complex waveforms in research, development, and engineering applications. With a wide memory depth and bandwidth range of 70 MHz to 200 MHz, it ensures precise measurement and reliable performance. This device is ideal for laboratories, production lines, and troubleshooting tasks that require detailed waveform analysis.
Features
- High-resolution 12-bit architecture for precise waveform details.
- Maximum sampling rate of 2 GSa/s for accurate signal capture.
- Supports 2-channel and 4-channel configurations.
- Bandwidth range from 70 MHz to 200 MHz for versatile applications.
- Deep memory depth for storing and analyzing longer signals.
- Advanced trigger and measurement functions for detailed analysis.
- Ideal for research, education, engineering, and troubleshooting tasks.
- Compact design suitable for labs and production environments.
Technical Specifications
| Specification | Details |
| Type | Digital Storage Oscilloscope |
| Resolution (Bits) | 12-bit high resolution |
| Analog Channels | 2 or 4 analog channels, up to 200 MHz bandwidth |
| Bandwidth | 70 μVrms noise floor at 200 MHz |
| Sample Rate (Max.) | Up to 2 GSa/s with 12-bit ADCs |
| Memory Depth (Max.) | Up to 50 Mpts or 100 Mpts |
| Waveform Capture Rate (Max.) | Up to 500,000 wfm/s (Sequence mode) |
| Trigger Types | Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern |
| USB AWG Module (Optional) | One channel, 25 MHz, 125 MHz sample rate, 16 kpts wavelength |
| Display | 7 in TFT-LCD capacitive touch screen (1024 × 600) |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Weight | N/A |
| Size (Dimension) | 1.53 in × 0.94 in × 1.06 in (39 mm × 24 mm × 27 mm) |
