Overview

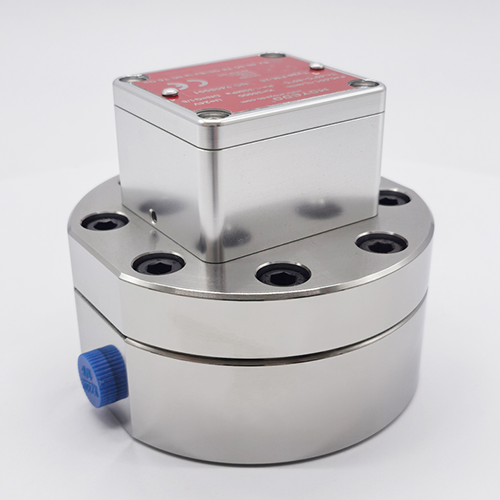

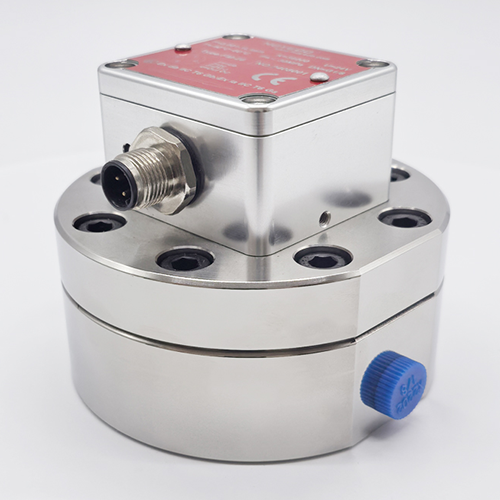

This high precision water quality tester integrates advanced gear flowmeter technology to deliver reliable and accurate liquid measurement across a broad flow range. Constructed from durable stainless steel, it supports various media including water, oil, corrosive liquids, and acids. With ±0.2% to ±0.5% accuracy, fast response time, and multiple flow rate options, it ensures precise monitoring for industrial and laboratory applications. Its compact design allows flexible installation in both vertical and horizontal orientations. Offering digital or mechanical display options, customizable outputs, and IP-rated protection, this device ensures performance, durability, and adaptability for diverse operational requirements.
Features
- Wide flow measurement ranges from 0.3 ml/min to 525 L/min
- High accuracy levels of ±0.2% and ±0.5%
- Stainless steel construction for durability and corrosion resistance
- Suitable for water, oil, corrosive liquids, and acids
- Fast response time of ≤0.05 seconds
- Multiple output options: pulse, analog, RS485 Modbus
- Operates in -20°C to +120°C temperature conditions
- IP65/IP67 protection for harsh environments
- Flexible installation in horizontal or vertical orientation
- Complies with ISO/DIN calibration standards
Technical Specifications
| Type | Oil Flow Meter, Variable Area Water Flowmeters, Variable Area Petroleum Flowmeters, Variable Area Oil Flowmeters |
| Accuracy | ±0.2%, ±0.5% |
| Measurement Range | 0.3 ml/min – 525 L/min |
| Flow Rate Options | 0.3 ml–30 ml/min, 0.4 ml–40 ml/min, 0.8 ml–100 ml/min, 1 ml–200 ml/min, 1 ml–500 ml/min, 2 ml–200 ml/min, 2 ml–400 ml/min, 2 ml–1000 ml/min, 3 ml–2 L/min, 4 ml–4 L/min, 10 ml–10 L/min, 20 ml–20 L/min, 30 ml–40 L/min, 50 ml–80 L/min, 100 ml–120 L/min, 1 L–200 L/min, 1 L–250 L/min, 1 L–350 L/min, 1.5 L–525 L/min |
| Medium Compatibility | Water, Oil, Liquids, Corrosive Liquids, Fluids, Acids |
| Material | Stainless Steel |
| Connectivity | Thread |
| Customized Support | OEM, ODM, OBM, Software Reengineering |
| Operating Pressure Range | 0.6 MPa – 25 MPa |
| Temperature Range | -20°C to +120°C |
| Viscosity Range | 0.6 – 2000 mm²/s |
| Repeatability | ≤ 0.1% |
| Signal Output Options | Pulse, Analog (4–20 mA), RS485 Modbus |
| Response Time | ≤ 0.05 s |
| Installation Orientation | Horizontal or Vertical |
| Display Type | Digital LCD / Mechanical Indicator (depending on configuration) |
| Calibration Standard | Complies with ISO / DIN flow measurement standards |
