Introduction

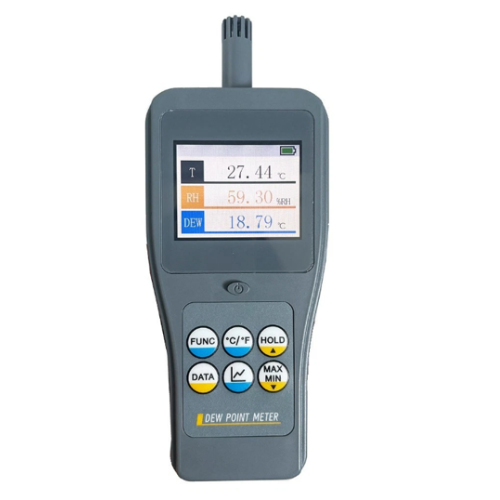

It is a high-precision professional dew point meter. It is able to measure Ambient Temperature, Dew Point Temperature, Wet Bulb Temperature, Relative Humidity, Absolute Humidity, PPMv. Widely used in laboratories, precision manufacturing, modern agriculture, meteorological measurement, chemical and pharmaceutical, power industry and other environmental temperature and humidity monitoring occasions.
Features
- Color LCD with display. It can display multiple values at the same time.
- Support multi-parameter measurement of ambient temperature, dew point temperature, wet bulb temperature, relative humidity, absolute humidity, PPMv.
- Temperature unit (°C/°F).
- 01 high resolution.
- High accuracy.
- With real-time measurement graph display function.
- With data storage function (99 Groups).
- With maximum, minimum function.
- With data hold function.
- With battery indication function.
- With automatic power off function.
Specifications
| Parameters | Details | |
| Display | Color LCD | |
| Test Parameters | Ambient Temperature, Dew Point
Temperature, Wet Bulb Temperature, Relative Humidity, Absolute Humidity, PPMv |
|
|
Ambient Temperature |
Range | -30～120°C (-22～248°F) |
| Accuracy | ±0.15°C (0～50°C)
±0.2°C (Other) |
|
| Resolution | 0.01 | |
|
Relative Humidity |
Range | 0～100%RH |
| Accuracy | ±1%RH (0～70%RH)
±1.5%RH (Other) |
|
| Resolution | 0.01 | |
|
Dew Point Temperature |
Range | -30～60°C (-22～140°F) |
| Accuracy | ±1.5°C (-10～60°C)
±(2+2%Num) °C (Other) |
|
| Resolution | 0.01 | |
| Wet Bulb Temperature | Range | 0～60°C (32～140°F) |
| Accuracy | ±0.7°C | |
| Resolution | 0.01 | |
| Absolute Humidity | Range | 0～300g/m³ |
| Accuracy | ±(0.5+5%Num) g/m³ | |
| Resolution | 0.01 | |
|
PPMv |
Range | 300～240000 |
| Accuracy | ±(50+8%Num) | |
| Resolution | 1 | |
| Temp. Unit | °C/°F | |
| Measurement
Graph Display |
Dew Point Temperature
(Can be Customized Other Parameters) |
|
| Storage | 99 Groups (A Total of 594 Data) | |
| Statistical Functions | Maximum, Minimum | |
| Automatic
Power Off |
10 Minutes (No Operation) | |
| Operating Conditions | 0～50°C (32~122°F) ；
0～90%RH (No Condensation) |
|
| Storage Conditions | -10～50°C (14~122°F) ；
0～95%RH (No Condensation) |
|
