Overview

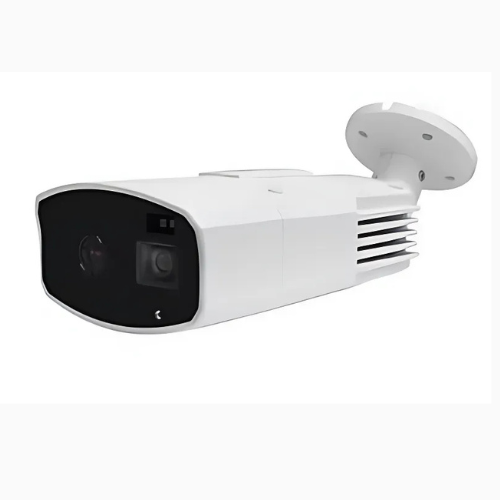

Hospitality Enviro Tech High-Precision Infrared Thermal Network Camera delivers precise thermal imaging with 384×288 effective pixels and ±0.5°F (±0.3°C) accuracy when used with a blackbody. It features a 40Hz frame rate, 39°×30° field of view, and dual H.265/H.264 video compression. This device supports mobile surveillance for Apple and Android, ONVIF protocol, and network interfaces RJ45 10M/100M, making it ideal for long-range temperature monitoring and security applications. Measurement distance is recommended 6.6–16.4 ft (2–5 m).
Features
- High-resolution thermal imaging: 384×288 pixels, 17 μm
- Precise measurement accuracy ±0.5°F (±0.3°C)
- Spectral range: 8–14 μm with NETD <60 mK
- Lens: 0.36 in (9.1 mm) with optional 0.51 in (13 mm)
- Wide field of view: 39°×30°
- Frame rate 40Hz for smooth monitoring
- Low-light performance: 0Lux/F1.4 IR on; Color 0.01Lux, B/W 0.001Lux
- Dual video compression: H.265/H.264, audio compression G.711u
- Supports ONVIF, TCP/IP, RTSP, DHCP, DDNS, NTP, PPPoE, UPnP, SMTP, FTP
- Mobile surveillance support for Apple and Android
- Recommended measurement distance: 6.6–16.4 ft (2–5 m)
Technical Specifications
| Effective Pixels | 384×288 |
| Pixel Size | 17 μm |
| Spectral Range | 8–14 μm |
| NETD | <60 mK @25°C, F#=1.0 |
| Lens | 0.36 in (9.1 mm), optional 0.51 in (13 mm) |
| Field Of View | 39° × 30° |
| F NO. | 1.2 |
| Frame Rate | 40 Hz |
| Min. Illumination | 0 Lux IR on, Color 0.01 Lux, B/W 0.001 Lux |
| Min. Measurement Distance | 16.4 ft (5 m) |
| Video Compression | H.265 / H.264 |
| Max. Resolution | 1920×1080 |
| Audio Compression | G.711u |
| Audio Bit Rate | 64 Kbps |
| Network Protocol | TCP/IP, UDP, HTTP, DHCP, RTSP, DDNS, NTP, PPPoE, UPnP, SMTP, FTP |
| Access Protocol | ONVIF |
| ANR | Support, match with NVR |
| Mobile Surveillance | Apple / Android |
| Measurement Distance | 6.6–16.4 ft (2–5 m) |
| Accuracy | ±0.5 °F (±0.3 °C) |
| Measurement Range | 86–113 °F (30–45 °C) |
