Overview

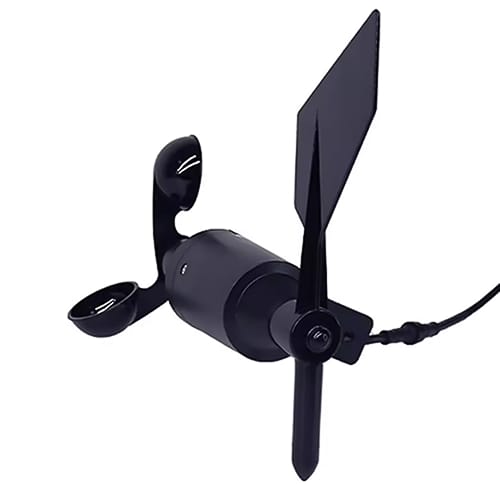

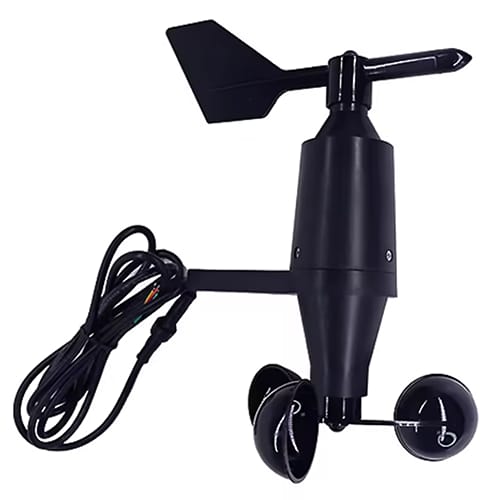

This high-precision wind speed and direction sensor is designed for reliable environmental monitoring in diverse applications such as meteorology, renewable energy, and industrial safety systems. Utilizing the Hall principle, it provides accurate wind speed measurements from 0 to 60 m/s and a complete 0–360° wind direction range. With an accuracy of ±(0.3 ± 0.03V) m/s and a resolution of 0.3 m/s, it ensures dependable data in both low and high wind conditions. The sensor operates efficiently with a starting wind speed as low as 0.6 m/s and consumes minimal power (≤200 mW), making it suitable for continuous operation. Powered by DC 12–24V, it supports RS485 (ModBus RTU) output for seamless integration into monitoring systems. Its robust design ensures consistent performance even in challenging environments, making it ideal for long-term field deployment.
Features
- Measures wind speed from 0–60 m/s
- Full 0–360° wind direction range
- Hall principle for accurate sensing
- ±(0.3 ± 0.03V) m/s accuracy
- 3 m/s resolution
- Starts at wind speeds ≤0.6 m/s
- Low power consumption ≤200 mW
- Operates on DC 12–24V supply
- RS485 (Modbus RTU) output interface
- Suitable for harsh outdoor environments
- Ideal for meteorology and industrial use
- Reliable continuous monitoring capability
Technical Specifications
| Specification | Details |
| Model Number | RY-FSX |
| Measuring Range (Wind Speed) | 0–60 m/s |
| Monitoring Principle (Wind Speed) | Hall principle |
| Accuracy | ±(0.3 ± 0.03V) m/s |
| Resolution | 0.3 m/s |
| Starting Wind Speed | ≤0.6 m/s |
| Wind Direction Measuring Range | 0–360° |
| Wind Direction Monitoring Principle | Hall principle |
| Power Supply | DC 12V–DC 24V |
| Power Consumption | ≤200 mW |
| Output | RS485 (Modbus RTU) |
