Overview

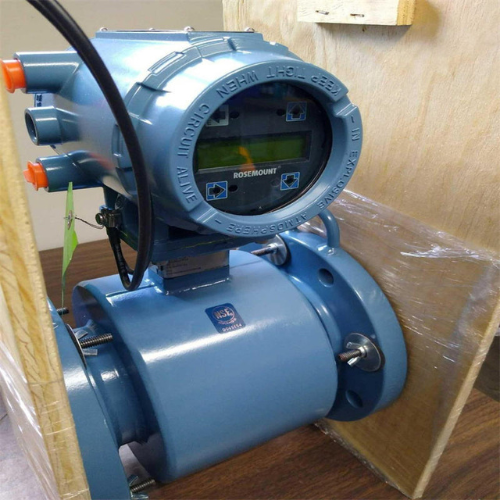

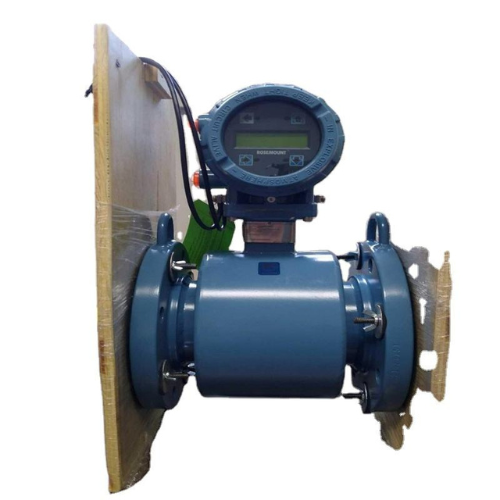

This magnetic flow meter is engineered to deliver precise and reliable liquid flow measurement across a wide range of industrial applications. Designed to operate under extreme temperature conditions from 200°C to 450°C, it ensures dependable performance even in demanding environments. The device supports line sizes ranging from 4 mm to 200 mm, offering flexibility for both small and large-scale installations. Featuring advanced liner materials such as ETFE, PTFE, and PFA, it provides excellent chemical resistance, making it suitable for a variety of liquids. The flow meter is equipped with an LCD digital display for real-time monitoring and outputs via 4-20 mA with HART protocols, ensuring seamless integration into control systems. With robust flange options compliant with international standards and long service reliability, this flow meter is an ideal solution for industries seeking durability, precision, and efficiency in flow measurement operations.
Features
- Wide operating temperature range of 200°C to 450°C
- Supports line sizes from 4 mm to 200 mm
- LCD digital display for real-time monitoring
- High measurement accuracy of ±0.25%
- Robust ingress protection rating of IP67/IP68
- Multiple liner materials for chemical resistance
- Fast response time under 200 milliseconds
- Compatible with Modbus, Profibus, and Fieldbus protocols
- Flexible installation in horizontal or vertical pipelines
- Certified compliance with CE, ISO, and IEC standards
Technical Specifications
| Parameter | Details |
| Type | Magnetic Flow Meter |
| Warranty | 3 Years |
| Customized Support | OEM |
| Operating Temperatures | 200°C to 450°C |
| Flange Options | ANSI Class 150 to 1500 |
| Output | 4-20 mA with HART 5 or 7 |
| Display | LCD Digital Display |
| Application | Liquid Flow Sensor |
| Line Sizes | 0.15-8 inch (4-200mm) |
| Liner Materials | ETFE, PTFE, and PFA |
| Flange Ratings | ASME B16.5 Class 150-300 DIN PN 10-40 |
| Accuracy | ±0.25% of reading |
| Repeatability | ±0.1% of measured value |
| Response Time | Less than 200 milliseconds |
| Ingress Protection Rating | IP67 / IP68 (depending on configuration) |
| Power Supply Requirement | 85–265 VAC or 24 VDC |
| Electrode Material Options | Stainless Steel, Hastelloy C, Titanium |
| Communication Protocols | Modbus, Profibus, FOUNDATION Fieldbus |
| Ambient Temperature Range | -40°C to +60°C |
| Installation Orientation | Horizontal or Vertical pipeline |
| Compliance & Certification | CE, ISO 9001, IEC standards |
