Overview

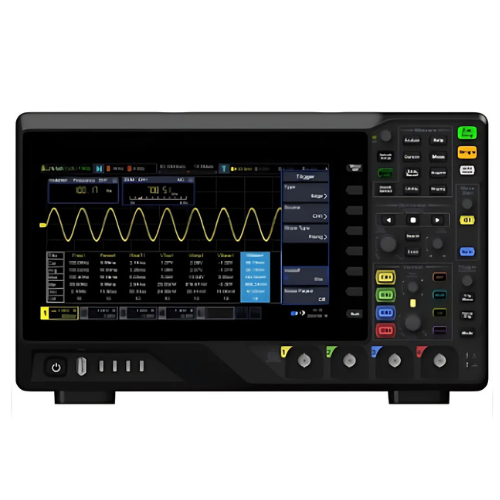

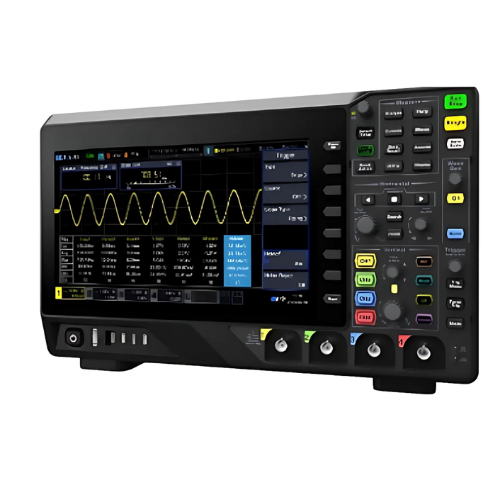

Hospitality Enviro Tech high-performance 4-channel 500mhz oscilloscope with 7-in-1 functions 10.1 inch multi-touch capacitive screen, 256 level waveform gray scale and color temperature display, 500MHz bandwidth, 2GSa/s sampling rate, 2G memory depth, 500.000wfms/s waveform capture rate; With a 25MHz waveform generator, supporting arbitrary wave output; 51 kinds of automatic measurement, providing full memory hardware measurement function; Rich serial protocol triggering and decoding functions; Multiple data analysis and processing functions; Integrate the functions of 7 instruments, significantly simplify the measurement system and speed up the measurement; Rich configuration interfaces are provided for more convenient use; It is a reliable oscilloscope that can provide you with professional measurement.
Features
- 7-in-1 instrument integration: oscilloscope, 16-channel logic analyzer, spectrum analyzer, frequency counter, DVM, arbitrary waveform generator, protocol analyzer;
- Up to 2GSa/s real-time sampling rate, 2G memory depth, hardware real-time waveform recording and playback up to 2 million frames;
- Multiple serial protocol triggering and decoding;
- Up to 500,000 wfms/s waveform capture rate;
- Up to 41 automatic measurements;
- Multiple data gathering and analysis: search, navigate and lister, histogram, bode plotter, power analyzer, counter.
Technical Specifications
| HETDOS-119 (A) | HETDOS-119 (B) | HETDOS-119 (C) | HETDOS-119 (D) | |
| Analog Channels | 4 | |||
| Bandwidth | 500 MHz | 350 MHz | 200 MHz | 100 MHz |
| Sampling Rate | 2GSa/s single channel, 2GSa/s half channels, 1GSa/s all channels | |||
| Memory Depth | 2 Gpts (single channel), 1 Gpts (dual channels), 500 Mpts (three or four channels) | |||
| Waveform Capture Rate | 500,000 wfms/s (for 25 ns, dots display, single channel, auto memory depth) | |||
| Vertical Resolution | 8 bits | |||
| Input Sensitivity | 1 MΩ: 500μV/div to 10 V/div | |||
| Input Sensitivity (50Ω) | 50 Ω: 500μV/div to 1 V/div | |||
| Time base Range | 500ps/divn to 1 ks/div | 1ns/div to n 1 ks/div | 2ns/div to 1 ks/div | 5ns/div to 1 ks/div |
| Time base Accuracy | ±1 ppm ± 1 ppm/year aging | |||
| Bandwidth Limit | 20 MHz, 100 MHz, 200 MHz, 350 MHz, 650 MHz, 750 MHz (Independent option for each channel) | |||
| Trigger Type | Edge, Pulse, Video, Slope, Overtime, Window, Runt, Superamp, Pattern, Delay, Setup/Hold, RS232, LIN, CAN, SPI, I²C | |||
| Serial Bus Decode | RS232, I²C, SPI, LIN, CAN | |||
| Arithmetic | Add, Subtract, Multiply, Divide, FFT, A&&B, A B, A*B, IA, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs, AX+B, Low Pass, High Pass, Band Pass, Band Stop | |||
| Automatic Measurements | 41 measurements, measurements update continuously with statistics | |||
| Analyse | Counter, DVM, Power analyzer, Histogram, Search, Navigate, Bode plotter | |||
| Recorder | ≥ 2 million frames (single channel) | |||
| Input Coupling | DC, AC, or GND | |||
| Input Impedance | 1 MΩ ± 1%, 50 Ω ± 1% ; 21 pF ± 3 pF | |||
| Waveform Generator | ||||
| Sampling Rate | 200 MSa/s | |||
| Amplitude Resolution | 12 bits | |||
| Waveform Generator Max. Frequency | 25 MHz | |||
| Waveform Types | Sine, Square, Pulse, Ramp, Noise, DC, Sinc, EXP, Rise, Fall, Lorentz, Gauss, ECG, Haver Sine, Arb | |||
| Digital Channels | ||||
| Input Channels | 16 | |||
| Digital Channels Sampling Rate | 1 GSa/s | |||
| Connectivity | USB host, USB device, LAN, Optional ports: HDMI, RS232 | |||
| Display | 10.1 inch capacitive multi-touch, 256 intensity levels, color graded persistence | |||
