Features

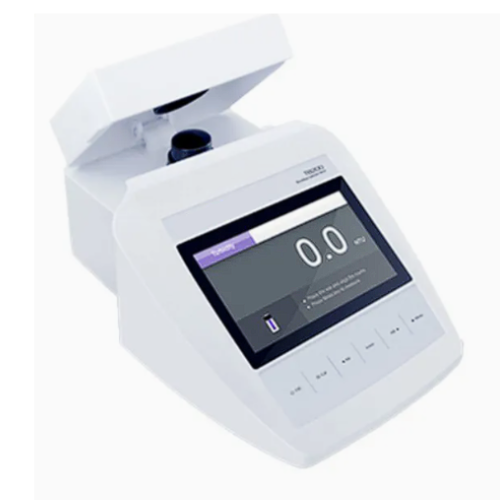

- Multiparameter benchtop turbidimeter with a 4.5-inch TFT display.
- Calibration with 2 to 7 points using Formazan standards.
- Four selectable turbidity units: NTU, FNU, EBC, and ASBC.
- TSS conversion factor for accurate measurement of total suspended solids.
- Auto-read function senses and locks in a stable reading.
- Setup menu for adjusting date and time, measurement mode, resolution, auto-power off, and more.
- Password protection to prevent unauthorized calibration and setting changes.
- Expanded memory stores and recalls up to 200 data sets.
- Reset function restores all settings to factory defaults.
- USB communication interface for easy data transfer to a PC.
Technical Specifications
|
Turbidity – Measuring Range |
0 to 2000 NTU / 0 to 500 EBC / 0 to 9999 ASBC |
|
Minimum Resolution (NTU) |
0.01, 0.1, 1 (automatic) |
|
Accuracy |
±2% of reading (0–500 NTU), ±3% of reading (501–2000 NTU) |
|
Calibration |
2 to 7 points |
|
Calibration Standard |
0.02 / 10 / 200 / 500 / 1000 / 1500 / 2000 NTU |
|
TSS – Range |
Depending on the TSS conversion factor |
|
TSS – Resolution |
0.1 / 1 |
|
TSS – Accuracy |
±3% of reading |
|
Light Source |
Infrared-emitting diode, wavelength 850 nm |
|
Detector |
Silicon photodiode |
|
Stray Light |
< 0.02 NTU |
|
Sample Vial |
60 × 25 mm (Ø) |
|
Sample Volume |
20 ml |
|
Auto-Power Off |
2 hours after last key pressed |
|
Memory |
Stores up to 200 data sets |
|
Output |
USB communication interface |
|
Display |
4.5-inch TFT LCD |
|
Power Supply |
12 V DC power adapter |
|
Size (W×D×H) |
9.84 × 6.97 × 3.78 in (250 × 177 × 96 mm) |
|
Net Weight / Gross Weight |
1.2 kg / 1.5 kg |
