Overview

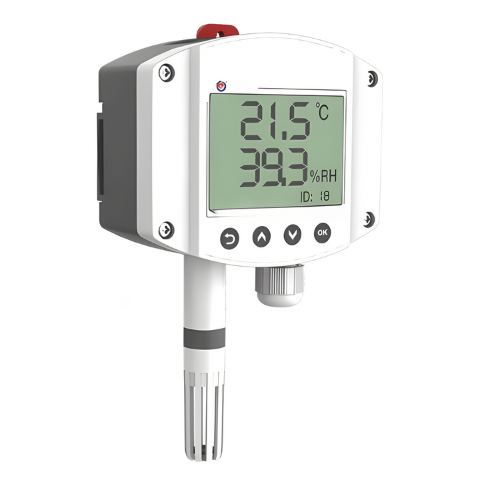

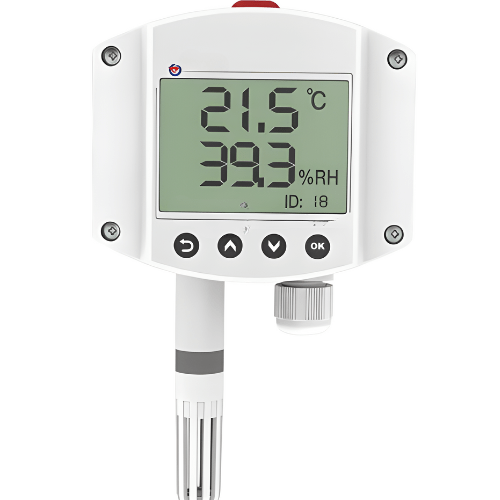

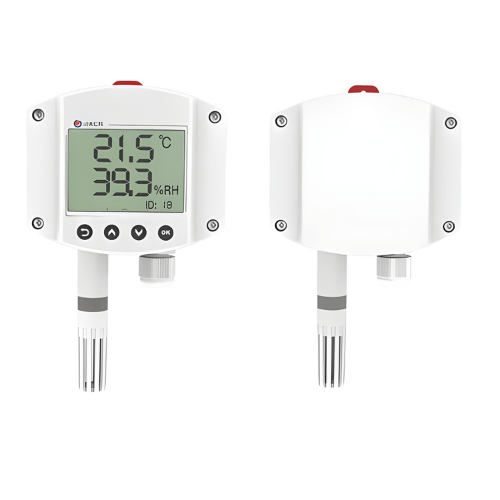

HETtemperature monitor digital air humidity is an industrial wall-mounted high-grade enclosure with a protection grade of IP65, rain and snow proof and good air permeability. The temperature sensor can be equipped with or without a legible LCD display. Easy to install, can be wall-mounted or rail-mounted.
Features
- Using high-precision temperature and humidity measurement unit, long-term stability and small drift
- Adopt dedicated 485 circuit and analog quantity circuit, wide application range
- 10~30V wide voltage range power supply
- Easy to install, can be wall-mounted or rail-mounted
- High anti-dust protection level (IP65)
Technical Specifications
| DC Power Supply | DC 10 V to 30 V |
| Temperature Range | -40 °F to 248 °F (-40 ℃ to 120 ℃) |
| Humidity Range | 0% RH to 100% RH |
| Transmitter Working Temp And Humidity | -4 °F to 140 °F (-20 ℃ to 60 ℃) |
| Probe Working Temperature | -40 °F to 248 °F (-40 ℃ to 120 ℃) |
| Probe Working Humidity | 0% RH to 100% RH |
| Temperature | 77 °F (25℃) |
| Humidity | ±3% RH |
| Output Signal | RS 485 |
| Hole Size | 2.7 in (70mm) |
