Overview

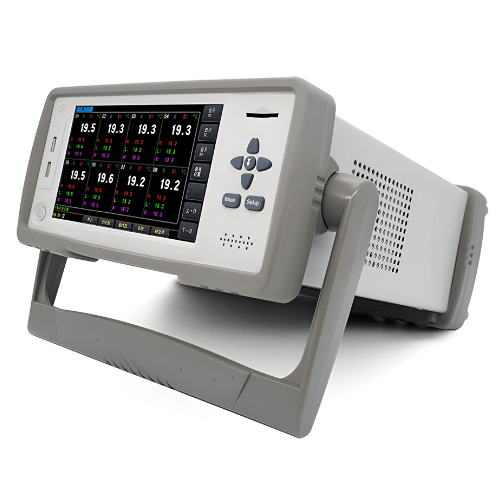

HETtemperature meter touch screen high-performance ARM microprocessor, can collect multi-channel temperature data simultaneously and response quickly. This has the function of checking broken thermocouple, high/low beep function and communication transmission. Sixty-four channels’ temperature data can be extended, compatible with various temperature sensors. Support realizes data acquisition, analysis and print through the standard computer software. It has USB disk storage and stores real-time sampling data. The users can adjust data for each channel independently
Feature
- Multichannel temperature tester
- Scan speed 1s
- Support mass storage

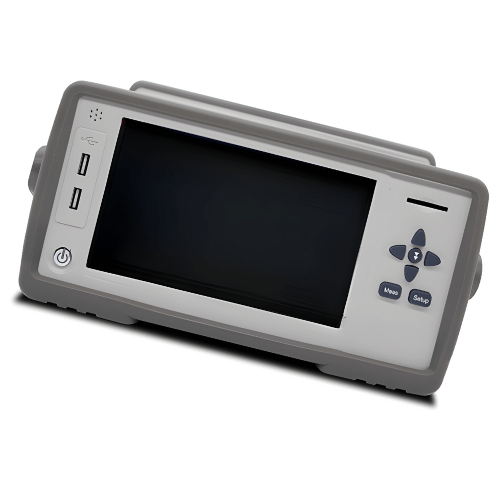

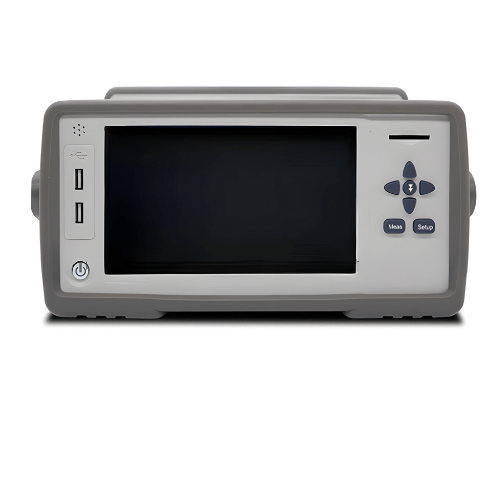

- TFT LCD color display touch screen
- Broken thermocouples check function

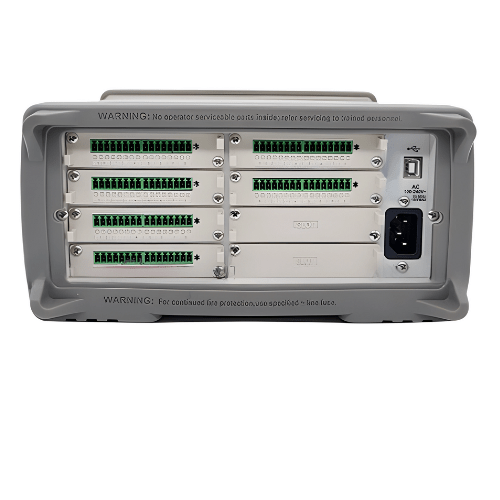

- 8 channels per up to 64 channels
Technical Specification
| Correction | Error corrects for each channel |
| Comparator | High to low beep. Individual setting high to low value for each channel |
| Interface | SD card interface, U disc interface, USB communication interface |
| Software | ATS 47 xx data acquisition software |
| Cold Junction Compensation |
Accuracy:32.36 °F (0.5 ºC) |
| Power Supply | 85 V to 260 C Frequency 50 Hz to 60 Hz Power 10 V |
| Size | 8.5 in x 3.4 in x 11.18 in (216 mm x 88 mm x 300 mm) |
| Resolution | 32.18 °F (0.1 ºC) |
| weight | 11.02 lbs. (5 kg) |
