Overview

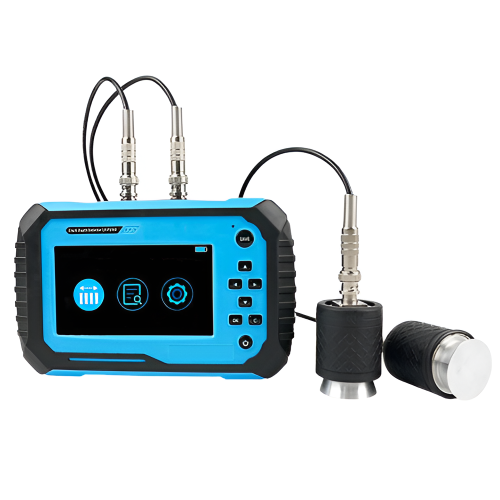

Hospitality Enviro Tech Hardness Testing Industrial Ultrasonic Crack Detector offers a highly accurate and reliable solution for measuring the depth of cracks in concrete structures. This device is designed with advanced ultrasonic pulse technology, enabling professionals to detect and analyze cracks up to 500 mm deep with impressive precision.
With a measurement accuracy of ±5 mm for cracks up to 50 mm and ±10% for deeper ones, this product ensures dependable results for structural assessment and maintenance. It features a user-friendly interface and compact design, with a host dimension of 200 × 136 × 50 mm, making it ideal for field use.
This device operates with an acoustic time resolution of 0.1 μs and an amplitude resolution of less than 0.5 dB, providing detailed insights into concrete integrity. Built to withstand tough working environments, it comes with IP55 protection and a 1-year warranty for added assurance.
Hospitality Enviro Tech’s solution is a must-have for civil engineers, construction inspectors, and quality control professionals needing a trusted tool for crack detection in concrete applications.
Features
- High Precision Waveform Acquisition
- Automatic First-Wave Detection & Magnification Adjustment
- Optimized for Concrete Crack Depth Measurement
- Dual Operation Interface (Touch & Button)
- Integrated Online System Software
- Quick Measuring Point Positioning
Technical Specification
| Measurement Range | 19.69 in (≤500 mm) |
| Measurement Accuracy | 0.2 in (±5 mm) for (crack depth ≤ 1.97 in (50 mm)) or ±10% for 1.97 in – 19.69 in (50 mm -500 mm) |
| Dimension | 7.87 in × 5.35 in × 1.97 in Host: (200 mm × 136 mm × 50 mm) transducer: 1.69 in × 2.91 in (Φ43 mm × 74 mm) signal line: 6.56 ft (2 m) |
| Total Weight | Host: 28.22 oz (800 g) transducer: 10.23 oz × 2 (290 g × 2 ) signal line: 6.35 oz × 2 (180 g × 2) |
| Sampling Period | 0.05 μs – 4 μs |
| Acoustic Time Resolution | 0.1 μs |
| Amplitude Resolution | < 0.5 dB |
