Overview

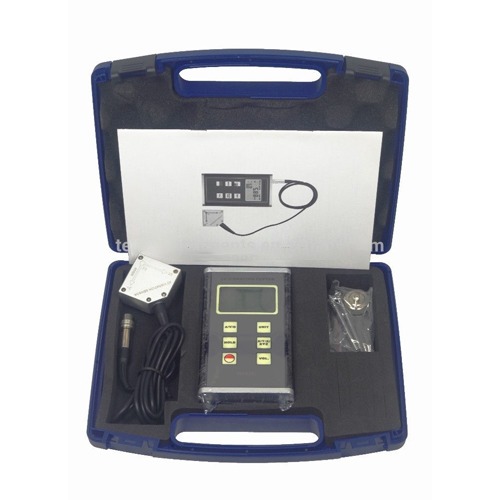

Hospitality Enviro Tech’s handheld vibration meter with USB and RS-232 outputs is engineered for comprehensive vibration diagnostics in industrial environments. This device features a piezoelectric accelerometer that simultaneously measures acceleration, velocity, and displacement across three axes, ensuring precise detection of vibration issues. It offers dual data interfaces for easy connection to external systems, an AC analogue output for live monitoring, and a robust design for field use. With its wide frequency range and high sensitivity, this product is ideal for machinery maintenance, equipment inspection, and predictive monitoring.
Features
- Simultaneous 3-axis vibration measurement
- Measures acceleration, velocity, and displacement
- Piezoelectric accelerometer for high accuracy
- USB and RS-232 data output interfaces
- AC analogue output for real-time monitoring
- Wide frequency range for varied applications
- Auto or manual power-off
- Low battery indication
- Rugged design for field operations
Technical Specifications
| Measurement Parameters | Acceleration, velocity, displacement |
| Acceleration Range | 0.1 m/s² to 400 m/s² |
| Velocity Range | 0.01 m/s² to 400 mm/s (0.0004 in/s to 15.75 in/s) |
| Displacement Range | 0.001 mm to 4.000 mm (0.00004 in to 0.157 in) |
| Frequency Range | 10 Hz to 1 kHz |
| Data Output | USB, RS-232, AC analogue output |
| Sensor Type | Piezoelectric accelerometer |
| Power Supply | 2 × AA batteries |
| Operating Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Product Weight | 1.10 lb (500 g) |
| Product Size | 7.87 in × 3.15 in × 1.57 in (200 mm × 80 mm × 40 mm) |
