Overview

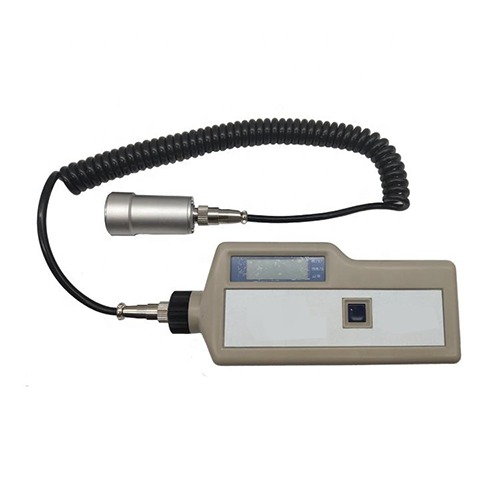

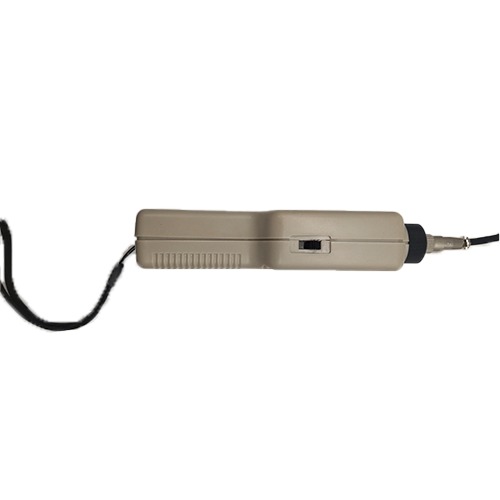

Hospitality Enviro Tech’s handheld vibration meter with peak-to-peak displacement measurement is engineered for precise monitoring of machinery vibration and shaft movement. Using eddy current sensing technology, it measures displacement, velocity, and acceleration across a wide range, offering a clear 3.5-digit LCD display. This device features long battery life, easy operation, and a rugged portable design, making it ideal for industrial inspections and predictive maintenance.
Features
- Eddy current sensing for accurate vibration analysis
- Measures displacement, velocity, and acceleration
- Peak-to-peak displacement measurement up to 1999 µm
- Wide measurement range and high accuracy
- 3.5-digit LCD display for clear readings
- Long battery life (up to 25 hours)
- Rugged handheld design for industrial use
- Simple operation with minimal setup
Technical Specifications
| Measurement Parameters | Displacement, velocity, acceleration |
| Displacement Range | 0 µm to 1999 µm (0 in to 0.078 in) peak-to-peak |
| Velocity Range | 0 mm/s to 200 mm/s (0 in/s to 7.87 in/s) |
| Acceleration Range | 0 m/s² to 200 m/s² |
| Display | 3.5-digit LCD |
| Sensor Type | Eddy current probe |
| Power Supply | Rechargeable lithium battery |
| Battery Life | Up to 25 hours continuous use |
| Operating Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Product Weight | 1.32 lb (600 g) |
| Product Size | 7.87 in × 3.54 in × 1.57 in (200 mm × 90 mm × 40 mm) |
