Features
- Triple-reading capability: Handles acceleration, velocity, and displacement—one device, zero hassle.
- Wide measurement bands: Covers low-speed mechanisms and high-frequency bearing issues.
- Solid accuracy for field use: ±5% plus minimal offset—trustworthy for maintenance diagnostics, but not lab precision.
- Smart usability: Tired of flat batteries? It auto-powers-off and alerts you, plus stores nearly 2,000 readings with USB export.

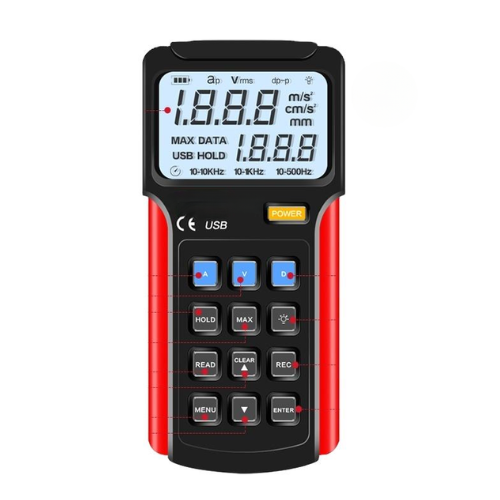

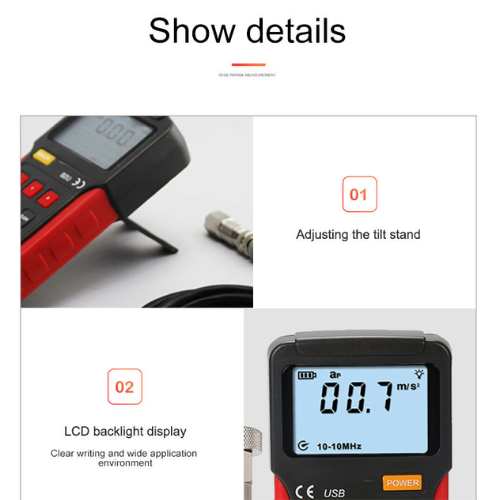

- Readable display: High-count LCD with backlight and max-hold keeps your readings clear in dim spaces.
- Portable and practical: Mid-weight (395 g) is easy to handle. Packs in storage options without sacrificing usability.
- Battery flexibility: Uses a 9 V battery—long shifts require backups, but spares are inexpensive and easy to carry.
- Reliably supported: A full year of warranty brings peace of mind. No IP rating—keep it away from liquids.
Technical Specifications
| Specification | Details |
| Measurement Modes | Acceleration (O-P), Velocity (RMS), Displacement (P-P) |
| Acceleration Range | 0 to 199.9 m/s², 10 Hz–10 kHz, ±(5% + 0.2 m/s²) |
| Velocity Range | 0.01 to 19.99 cm/s RMS, 10 Hz–1 kHz, ±(5% + 0.02 cm/s) |
| Displacement Range | 0.001 to 1.999 mm P-P, 10 Hz–500 Hz, ±(5% + 0.002 mm) |
| Display Count | 2000 |
| Data Storage | Up to 1999 sets of readings |
| Features | Data Hold, Max Value, Auto Power-Off, Low Battery Indicator, USB Communication, Backlight |
| Battery & Power | Powered by 9 V battery (6F22); ~8 h runtime (alkaline) or ~3 h (Zn-Mn) |
| Dimensions | 6.54 × 3.15 × 1.18 in |
| Weight | 395 g (including battery) |
