Overview

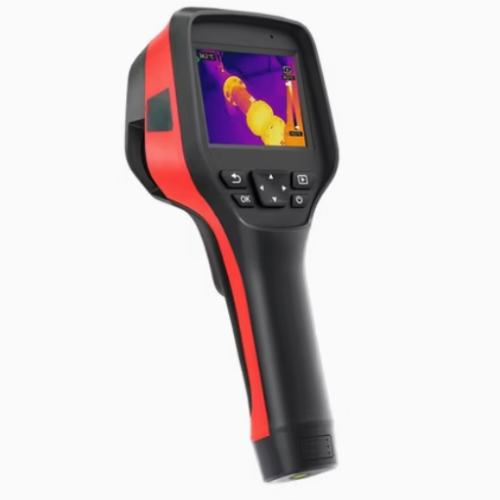

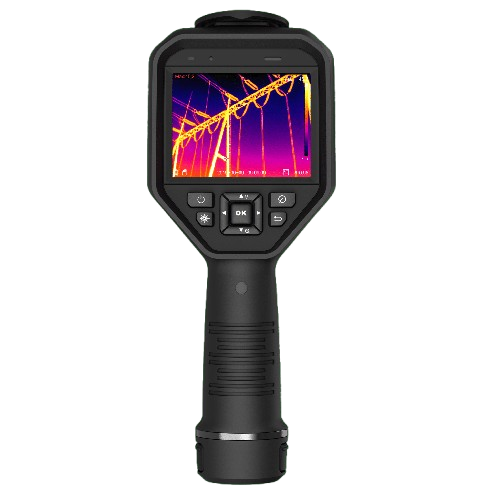

Hospitality Enviro Tech Handheld Thermal Imaging Camera with Manual Focus offers high-resolution infrared detection, a wide temperature measurement range, and precise manual focusing for diverse industrial and inspection applications. It supports multiple image modes, including thermal, visible light, and PIP, with 10 selectable color palettes. The device features a 5MP digital camera, laser pointer, and adjustable emissivity, along with customizable ambient temperature, distance, and alarm settings for enhanced accuracy in varying conditions.
Features
- 384×288 resolution thermal detector with 7.5–14 µm spectral range
- High thermal sensitivity of 35 mK for precise detection
- 43.7°×31.9° wide field of view with manual focus control
- Temperature measurement from -4 °F to 302 °F and 212 °F to 1022 °F
- ±2% or ±3.6 °F measurement accuracy with 0.1 °F minimum difference
- Multiple viewing modes: thermal, dual-spectrum fusion, visible light, and PIP
- 10 color palettes and temperature alarm with image alert function
- Built-in 5 MP digital camera and laser pointer
Technical Specifications
| Detector Resolution | 384 × 288 |
| Spectral Range | 7.5–14 μm |
| Pixel Pitch | 12 μm |
| Thermal Sensitivity/NETD | 35 mK |
| IFOV | 1.98 mrad |
| Frame Rate | 30 Hz |
| Focal Length | 0.244 in (6.2 mm) |
| FOV | 43.7° × 31.9° |
| Emissivity Settings | 0.01–1.00, step 0.01 |
| Ambient Temperature Settings | 14 °F ~ 122 °F, step 1 °C |
| Distance Settings | 3.28 ft ~ 65.62 ft (1–20 m), step 3.28 ft (1 m) |
| Digital Zoom | 1×, 2×, 4×, 8× |
| Image Mode | Thermal, dual-spectrum fusion, visible light, PIP |
| Digital Camera | 5 MP |
| Weight | 23.63 oz (670 g) |
| Camera Dimension (L × W × H) | 10.17 × 4.14 × 4.03 in (258.4 × 105.1 × 102.3 mm) |
| Measurement Accuracy | ±2% or ±3.6 °F (±2 ℃) |
| Min. Measurable Temperature Difference | 0.18 °F (0.1 °C) |
| Temperature Measurement Range | -4 °F ~ 302 °F (-20 ℃ ~ 150 ℃), 212 °F ~ 1022 °F (100 ℃ ~ 550 ℃) |
| Operating Temperature Range | 14 °F ~ 122 °F (-10 ℃ ~ 50 ℃) |
| Storage Temperature Range | -4 °F ~ 140 °F (-20 ℃ ~ 60 ℃) |
