Overview

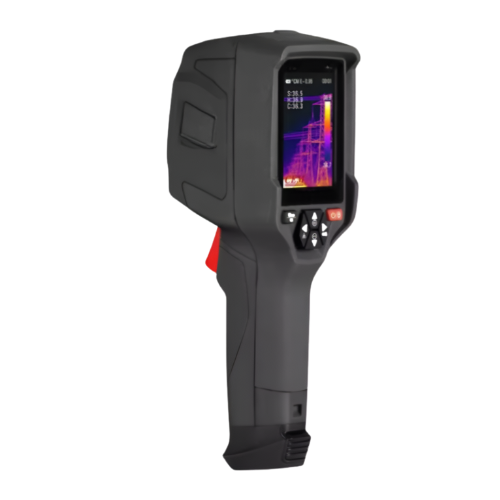

Hospitality Enviro Tech Handheld Infrared Thermal Imaging Camera with 120×90 resolution is designed for reliable temperature detection, image storage, and environmental analysis. This device supports infrared and visible light image capture with built-in analysis tools, ensuring accurate results for a wide range of applications. It comes equipped with a 2 MP integrated digital camera, multiple color palettes, and Wi-Fi/USB connectivity for real-time video transmission. This product provides high precision with ±0.5°C (±0.9°F) accuracy and features a rechargeable lithium battery lasting up to 4 hours, making it ideal for field inspections, industrial maintenance, and safety monitoring.
Features
- Offers a 120×90 infrared resolution with multiple color palettes for flexible analysis.
- Stores over 6000 infrared and visible images in JPEG or HIR format.
- Provides real-time video transmission via Wi-Fi or USB Type-C interface.
- Built-in image analysis tool delivers complete measurement functions.
- Integrated 2 MP digital camera enhances image clarity and reporting.
- High temperature alarm default set at 37.3°C (99.1°F) for safety monitoring.
- Rechargeable lithium battery provides up to 4 hours of continuous operation.
- Rugged design ensures 2m fall protection, 25g impact resistance, and 2g seismic behavior.
Technical Specifications
| Infrared Resolution | 120 × 90 |
| Material | Plastic + PCB |
| Field of View | 21 × 21° |
| Spatial Resolution | 4.53 mrad |
| NETD | <0.18°F (<0.1°C) at 86°F (30°C)/100mK |
| Image Frequency | 25 Hz |
| Focal Plane Array (FPA) Spectral Range | Uncooled microbolometer / 8–14 μm |
| Color Palettes | IRON, Rainbow, Grey, Grey Inverted, Brown |
| Image Storage | Standard JPEG or HIR with measurement data (>6000 pictures) |
| Digital Camera | 2 MP with 65° field angle |
| Battery | Rechargeable lithium battery, up to 4 hours |
| Input Voltage | DC 5V |
| Humidity (Working & Storage) | 10%–90% |
| Fall Protection Grade | 6.56 ft (2 m) |
| Impact Resistance | 0.88 oz (25 g), IEC60068-2-29 |
| Seismic Behavior | 2g, IEC60068-2-6 |
| Size (H × W × D) | 8.82 × 3.03 × 3.78 in (224 × 77 × 96 mm) |
| Weight | <17.6 oz (<500 g) |
| Temperature Control Accuracy | ±0.9°F (±0.5°C) at 89.6°F to 107.6°F (32°C to 42°C); ±3.6°F (±2°C) outside this range |
| Temperature Range | -4°F to 752°F (-20°C to 400°C) |
| Operating Temperature | 5°F to 122°F (-15°C to 50°C) |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) |
| High Temperature Alarm Setting | Default 99.1°F (37.3°C) |
