Overview

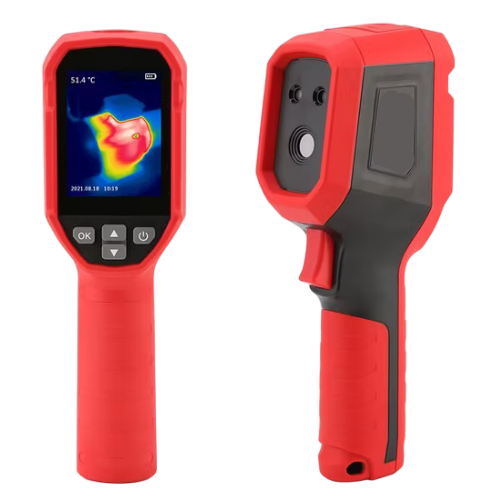

Hospitality Enviro Tech Infrared Thermal Camera offers precise temperature measurement with -4°F to 752°F range and 60 mK thermal sensitivity. This device features a 2.4″ TFT screen, wide 50°×38° FOV, and 320×240 infrared display for clear imaging. Built-in 32GB SD memory and fixed focus make it perfect for industrial, OEM, or professional applications.
Features
- IR resolution: 120×90 pixels with 320×240 infrared display
- 4″ TFT screen with 320×240 LCD resolution
- Wide field of view: 50°×38°
- Thermal sensitivity (NETD) 60 mK for precise temperature detection
- Measures object temperatures from -4°F to 752°F (-20°C to 400°C)
- Frame rate: 25Hz for smooth imaging
- Spatial resolution (IFOV): 7.3 mrad
- Built-in 32GB SD card memory for storage
- Visible light resolution: 300,000 pixels for clear fusion images
- Shortest focusing distance: 1.64 ft (0.5 m)
- Fixed focus mode with optional OEM customization
Technical Specifications
| IR Resolution | 120×90 pixels |
| Infrared Image Resolution | 320×240 |
| LCD Resolution | 320×240 |
| Screen Display | 2.4″ TFT |
| Field of View (FOV) | 50°×38° |
| Thermal Sensitivity (NETD) | 60 mK |
| Spatial Resolution (IFOV) | 7.3 mrad |
| Frame Rate | 25Hz |
| Wavelength Coverage | 8–14 μm |
| Visible Image Resolution | 300,000 pixels |
| Shortest Focusing Distance | 1.64 ft (0.5 m) |
| Focus Mode | Fixed |
| SD Card Memory Size | 32 GB |
| Single Package Size | 7.87in × 5.91in × 3.94in (20×15×10 cm) |
| Weight | 4.41 lb (2.0 kg) |
| Temperature Measurement Range | -4°F to 752°F (-20°C to 400°C) |
| Measurement Accuracy | ±3.6°F / ±2°C or ±2% |
